Red LED Thin Exit Light Combo | Fully Adjustable Lamp Heads

Base Code: COMBOT-R

Items marked FAST SHIP typically ship same day if order is placed before noon

Red LED Thin Exit Light Combo | Fully Adjustable Lamp Heads
Processing...

Get Help
Qty

A thin, low-profile Combo Exit Sign. If you're looking for an exit lighting solution that doesn't take over your decor, this is the sign for you. This sleek design is less than 2” in width, including the rectangular adjustable lamp heads. This sign meets all the same requirements and listings as a standard unit and can be used almost anywhere! This exit sign operates 120-277 VAC. Includes a mounting canopy that allows for ceiling mount. Includes a lightweight, maintenance-free Ni-MH battery, that provides 90 minutes of emergency power in case of a power failure. Two “exit” faceplates and a blank faceplate are provided. The faceplates have two knock-out chevrons for easy customization.


This product has been tested to meet all required U.S. standards by Underwriters Laboratories, Inc. (UL), the most widely recognized U.S. nationally recognized testing laboratory (NRTL).

UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

LED Lighting
This product uses energy efficient and long lasting LED's.

Battery Included

Battery Included
This product contains a battery for backup power. The battery must be connected during installation.

Features

  • UL 924, NEC, OSHA and NFPA 101 Life Safety Code
  • Two 300° adjustable LED lamps
  • Injection-molded, high-impact, UL94 V-0 thermoplastic construction
  • 120-277 VAC operation
  • Universal mounting pattern knock-out in back plate for J-box mounting
  • Knock-out left/right arrows
  • Test switch and charge indicator
  • Innovative and easy installation in minutes

Specifications

Dimensions (May Vary by Model)
Width16.92"
Height7.59"
Depth1.02"
Weight7.00 lb

What's included?

  • Thin RED LED Combo Exit Sign
  • Two "EXIT" Faceplates (with optional knockout arrows)
  • One Blank Faceplate
  • Mounting Canopy, Installation Instructions & Hardware (Inside Unit)
  • Battery (Inside Unit) - Must connect the battery after installation

Construction

The COMBOT series is constructed from injection-molded, high-impact, engineering-grade, UV-stabilized, UL 94 V-0 thermoplastic. White housing is standard.

Illumination

Emergency lamps use long-lasting, energy efficient ultra bright white LEDs. Heads are made with high-performance chromeplated reflectors and polycarbonate lenses for optimal light distribution. Exit portion uses Red or Green LEDs.

Emergency Operation

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates recharging a discharged battery within 24 hours.

Battery - Battery Backup

The COMBOT Thin Combo Exit Sign series is designed with 2 maintenance-free Ni-MH batteries - (1) 1.2V 1000mAh and (1) 2.4V 1000mAh battery - that provides an emergency duration of 90 minutes. Recharge time of the battery is 24 hours.

Operational Temperature

Temperature Ratings
Standard Option 0°C to 40°C / 32°F to 104°F

Photometrics

Total Luminaire Lumens : 157lm

Download .IES File

Electrical Components

120-277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit.

Installation

The COMBOT is suitable for surface wall and top mounting via included canopy. Snap together design allows for quick and easy installation. Knock-out chevrons for customized egress signage.

Mounting Configurations   Mounting Configurations Explained

PDF Download   View Installation Instructions

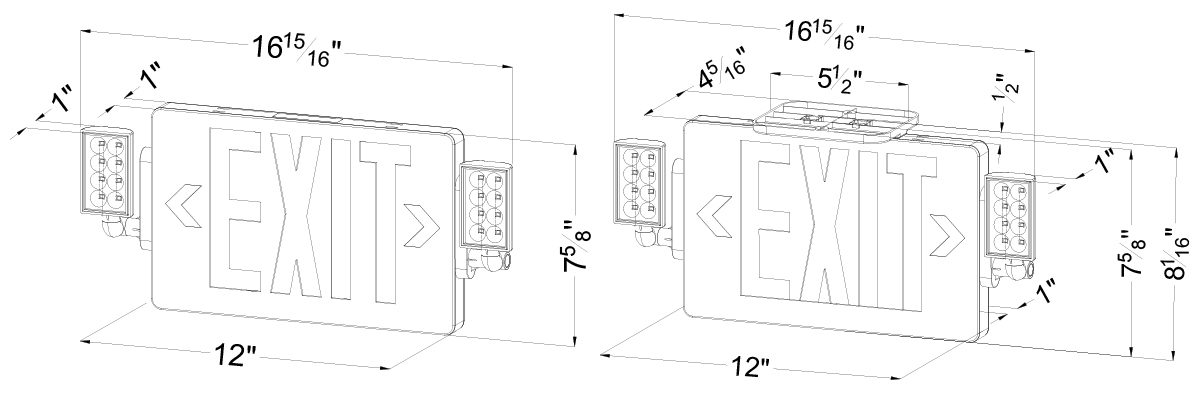

Dimensions

Red LED Thin Exit Light Combo | Fully Adjustable Lamp Heads Dimensions

Customer Questions & Answers
Post a question and have an expert answer



Q Isreali Thomas • 05/04/2021, 7:14:44 PM Do you have the signs that plug in? And sensor lights on them?
A Exit Light Co. We currently do not sell exit signs with sensor lights on them. Our signs are meant for emergency use when the power shuts off from the building.
Q Michael yenser • 09/01/2022, 1:51:49 PM Are these emergency lights okay for outside
A Exit Light Co. These units are not for outside use, we do carry units that are designed for outside.
Q Robert • 11/03/2022, 2:52:53 PM Can it be double sided?
A Exit Light Co. Yes, the COMBOT-R comes with two faceplates so that it can be used double-sided if needed.
Q Terry Jarman • 12/13/2022, 11:10:21 AM Are these on permanently or only in the dark.
A Exit Light Co. The EXIT sign stays on continuously and the side emergency lights will turn on when a power loss is detected in the building's electrical system. The emergency lights will stay on for a minimum of 90 minutes.
Q Nick Ballesteros • 01/19/2023, 2:01:46 PM If these are set in an unlit or poorly lit room will the emergency lights always remain on?
A Exit Light Co. No, the emergency lights will only turn on when a power loss is detected in the building's electrical system. The lights will stay on for a minimum of 90 minutes, using the battery inside the unit for power.
Q Marty • 05/23/2023, 11:55:31 AM We have several of these, and need replacement batteries, but are unable to find the ones with the correct connector in the OEM size. Do you carry them? If so, can you email me a price and part# for each of the two batteries? Thank you
A Exit Light Co. Our website recommends keeping the old connectors to splice with the new ones. Please see this video for step-by-step instructions: https://www.youtube.com/watch?v=o3mO1cqlfhA
Q Don camillo • 06/08/2023, 12:16:23 PM My building inspector is requiring me to have a light turn on if the power goes off ,with this product do that
A Exit Light Co. Yes, the COMBOT-R unit is designed to come on when power loss is detected in the building. The lights will stay on for a minimum of 90 minutes.
Q John A Erickson • 11/05/2023, 9:19:30 PM Do these meet fire codes
A Exit Light Co. Yes, the our COMBOT series is meets or exceeds the following listings: UL 924, NEC, OSHA and NFPA 101 Life Safety Code.
Q Charles Weintritt Davis Products Co Inc 223 Martin Luther King Dr Bogalusa La 70427 • 11/08/2023, 8:17:33 AM Please advise the lumen output on Combot- R and ComboJR2 Lights
A Exit Light Co. The COMBOT series puts out a total of 157lm while the COMBOJR2 series puts out a total of 235lm.
Q William L. Wagner • 01/08/2024, 2:46:37 PM Can hard wired exit light be on 24 hours per day, then with power failure will it stay on for 90 minutes? Thank you.
A Exit Light Co. Yes, the unit is hard wired and the "EXIT" sign portion is lit all the time. The emergency lights on the side of the unit will turn on only when a loss of power is detected. They will stay on for a minimum of 90 minutes.
