Hazardous Location Rated Red LED Combo Exit Light | Class 1 Division 2 | Adjustable Head Lamps

Base Code: COC1D2-R

Items marked FAST SHIP typically ship same day if order is placed before noon

Hazardous Location Rated Red LED Combo Exit Light | Class 1 Division 2 | Adjustable Head Lamps
Processing...
$750.00

Lead Time: 7-10 Day

Qty

The COC1D2 Combo Exit Sign combines energy-saving LED technology, with a durable enclosure suitable for hazardous locations. UL Listed for use in Class 1, Division 2, Groups A, B, C & D rated areas. This unit offers several levels of protection against the elements, including dust, dirt and water and is designed for use in hostile environments that would otherwise damage ordinary sign components. Constructed of impact and corrosion resistant fiberglass reinforced polycarbonate. Enclosure is built as one piece with a UV stabilized polycarbonate lens, molded gasket and stainless steel hardware.

Compatible Remote Head(s): RH-C1D2

Class 1 Division 2 Rated

Class I Division 2 Rated
This product has been tested for hazardous and industrial environments.

LED Lighting

LED Lighting
This product uses energy efficient and long lasting LED's.

Battery Included

Battery Included
This product contains a battery for backup power. The battery must be connected during installation.

Features

  • UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes
  • Rated for Class 1, Division 2, Groups A, B, C & D.
  • UL Listed for Wet Locations & IP66 Rated for Ingress Protection
  • 120/277 VAC dual-voltage input
  • Internal solid-state transfer switch
  • Universal knockout pattern on back
  • Fiberglass reinforced polycarbonate construction

Specifications

Dimensions (May Vary by Model)
Height10"
Depth4"
Length13.12"
Weight20.00 lb

What's included?

  • Green LED C1D2 Rated Combo Exit Sign
  • Mounting Hardware
  • Installation Instructions

Construction

The COC1D2 Combo Exit Sign series housing is contructed of fiberglass reinforced polycarbonate in a gray finish. Corrosion-resistant enclosure with one piece design features improved impact resistantance, UV stabilized polycarbonate lens, molded gasket and stainless steel hardware. EZ snap-out chevron directional indicators. Tamper-proof hardware is available to prevent unauthorized access to the unit.

Illumination

The COC1D2 Combo Exit Sign series is designed ith two fully adjustable, ultra bright 3.3W high performance MR-16 base LED lamps heads for optimized center-to-center spacing. Long-life, energy efficient Red/Green LED EXIT sign illumination.

Emergency Operation

Upon failure of the normal utility power, an internal solid-state transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates recharging a discharged battery within 24 hours.

Battery - Battery Backup

The COC1D2 Combo Exit Sign series incorporates a 6V or 12VV maintenance-free NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.

Operational Temperature

Temperature Ratings
Standard Option32°F to 122°F
Expanded Temp Rating -4°F to 122°F

Photometrics

Total Luminaire Lumens : 176lm per lamp head
Input Wattage: 3.47

Download .IES File

Standard mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 45ft for a 3ft path of egress.

Mounting height of 10ft illuminates 1 footcandle (FC) spaced at 38ft for a 3ft path of egress.

Disclosure:

Spacing is measured in lab condition with an assumed open space, no obstruction and reflection rates of 80 (ceiling) / 50 (walls) / 20 (floor). Actual spacing may vary depending on what environment the fixture is installed in.

Hazardous Location Rated Red LED Combo Exit Light | Class 1 Division 2 | Adjustable Head Lamps Photometrics

Self-Testing Option

Self-test models perform an monthly, biannual and annual test to ensure reliable operation and compliance to electrical/life-safety codes.

Remote Head Capable Option

The COC1D2 Combo Exit Sign series offers 4.8W and 7.8W of remote capacity. No lamp head option enables unit to be used as a remote head capable EXIT sign.

Electrical Components

Dual 120/277 VAC operation. LED display indicates AC/ON. Unit offers surge protected, solid state circuitry. Battery backup models offer an external push button test switch, brownout detection, AC lockout, low voltage disconnect and visual LED system fault indicator.

Installation

The COC1D2 Combo Exit Sign series includes die-cast mounting brackets for surface wall-mount installation. Pre-installed conduit hub for conduit and pendant-mount installation.

Mounting Configurations   Mounting Configurations Explained

PDF Download   View Installation Instructions

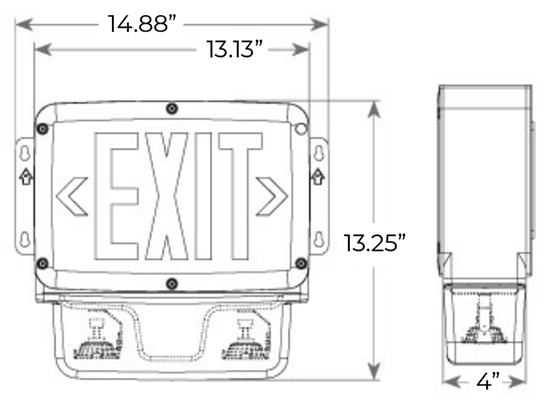

Dimensions

Hazardous Location Rated Red LED Combo Exit Light | Class 1 Division 2 | Adjustable Head Lamps Dimensions
