Custom LED Combo Sign | Interchangeable Pictograms | Swivel Lamp Heads

Base Code: COMBOCU

Items marked FAST SHIP typically ship same day if order is placed before noon

Custom LED Combo Sign | Interchangeable Pictograms | Swivel Lamp Heads
Processing...

Get Help

Lead Time:
User Provided Artwork - 3-4 Week

Qty

Now offering custom LED Combo Sign with interchangeable slide-in pictograms. Sophisticated and practical solution that seamlessly combines quality LED illumination with modern soft corner styling. This attractive LED combo sign has an aesthetically pleasing design that tapers slightly toward the bottom; not only eye-catching but also incredibly easy to install and versatile, making it an ideal choice for a wide range of applications. Designed to have interchangeable custom pictograms to properly mark path of egress, restroom access, area of rescue and more. Available in white and black housing as well as red, green or blue artwork/custom wording. UL Tested for USA and Canada Markets.

Available Pictograms:


This product has been tested to meet all required U.S. standards by Underwriters Laboratories, Inc. (UL), the most widely recognized U.S. nationally recognized testing laboratory (NRTL).

UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

LED Lighting
This product uses energy efficient and long lasting LED's.

Battery Included

Battery Included
This product contains a battery for backup power. The battery must be connected during installation.

Features

  • UL Tested for USA and Canada Markets
  • Interchangeable Pictrograms
  • All LED light! No SLA batteries, uses long lasting NiCads that are very low maintenance
  • 120V-347VAC Operations
  • Fully adjustable swivel-mount LED lamp heads each equipped with white high output LEDs
  • Universal mounting canopy for ceiling, wall, and side mount
  • Lightweight with snap-together construction for easy installation
  • LED status indicator
  • Injection molded, impact- and scratch-resistant, corrosion-proof, UL 94 V-0 flame retardant housing
  • Push-to-test switch

Specifications

Dimensions (May Vary by Model)
Height7.48"
Depth2.16"-1.73"
Length11.61"
Weight4.00 lb

What's included?

  • Combo Exit Sign / Emergency Light (Lamp Heads Inside Unit)
  • Custom Pictogram
  • One Blank Faceplate
  • Mounting Canopy, Installation Instructions & Hardware (Inside Unit)
  • 2 NiCad Batteries - Must connect the battery after installation

Construction

The COMBOCU Combo Exit Sign series is constructed from injection molded thermoplastic ABS housing, plastic enclosure 5VA flame retardant housing.

Illumination

Uses two high power 2W LED lamp heads. CCT 6000k. Lamp heads are mounted on a track to allow swivel and maximum adjustability.

Emergency Operation

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

Battery - Battery Backup

The COMBOCU Combo Exit Sign series is designed with two maintenance-free 3.6V 1000mAh NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.

Operational Temperature

Temperature Ratings
Series Temperature
Standard 50°F to 95°F

Photometrics

Total Luminaire Lumens : 250
Voltage: 3.6V
Wattage: 4W
Hz: 60

Suggested mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 24ft for a 3ft path of egress.

Disclosure:

Spacing is measured in lab condition with an assumed open space, no obstruction and reflection rates of 80 (ceiling) / 50 (walls) / 20 (floor). Actual spacing may vary depending on what environment the fixture is installed in.

Custom LED Combo Sign | Interchangeable Pictograms | Swivel Lamp Heads Photometrics

Available Pictograms

Area of Refuge
Pool
Area of Rescue Assistance
Rayon X En Marche
Custom Artwork/Text (Customer Provides Drawing)
Room In Use
Elevator
Running Man
In Use
Salida
MRI Magnet Always On
Wheelchair
No Exit
X-Ray In Use

Electrical Components

Universal 120V-347VAC operation. LED display indicates AC/ON. An external push button test switch with battery backup units allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.

Installation

The COMBOCU Combo Exit Sign series is suitable for wall, side or ceiling installation via included mounting plate. Snap together design allows for quick and easy installation.

Mounting Configurations   Mounting Configurations Explained

PDF Download   View Installation Instructions

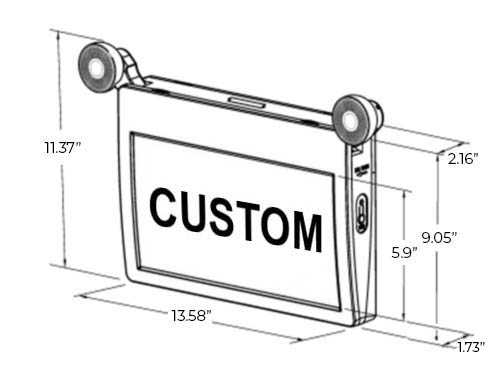

Dimensions

Custom LED Combo Sign | Interchangeable Pictograms | Swivel Lamp Heads Dimensions
