Salida Green Combo Edge Lit LED Exit Sign | Recessed - Ceiling and Wall Mount | Adjustable LED Lamps

Base Code: COMBOELR-G-SP

Items marked FAST SHIP typically ship same day if order is placed before noon

Salida Green Combo Edge Lit LED Exit Sign | Recessed - Ceiling and Wall Mount | Adjustable LED Lamps
Processing...
$150.00

Lead Time:
Aluminum: FAST SHIP
Black & White: 3-5 days

Qty

This stylish and modern SALIDA combo unit is perfect for any high-end design application. This unit combines a beautiful edge-lit exit sign and adjustable emergency lights on a sleek recessed mount. The premium aluminum housing and V-stabilized ultra-clear acrylic paneling make this exit sign architecturally pleasing. Field installable directional arrows for easy and fast configuration. For a double-sided sign, select the “double-sided mirrored panel” from the sides drop-down box. Includes a lightweight, maintenance-free NiCad battery, providing 90 minutes of emergency illumination in case of a power failure.  Compatible with both sheetrock and drop ceiling/remodel applications. This exit sign operates 120-277 VAC.

Compatible Remote Heads: RHB-WPL and RHB-L


This product has been tested to meet all required U.S. standards by Underwriters Laboratories, Inc. (UL), the most widely recognized U.S. nationally recognized testing laboratory (NRTL).

UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

LED Lighting
This product uses energy efficient and long lasting LED's.

Battery Included

Battery Included
This product contains a battery for backup power. The battery must be connected during installation.

Features

  • UL 924, NEC, OSHA and NFPA 101 Life SafetyCode
  • SALIDA Faceplate
  • Listed for damp location
  • Recessed Mount - Ceiling and Wall
  • Aluminum housing with high grade acrylic face
  • Field Installable Arrows for Left, Right or Both directions.
  • Long life LED illumination
  • 3W Power Consumption
  • Test switch and charge rate indicator on battery backup models
  • Dual 120/277 volt operation

Specifications

Dimensions (May Vary by Model)
Width2.75"
Height6.98"
Depth2.98"
Length17.24"
Weight10.00 lb

What's included?

  • Green COMBO LED Edge Lit Exit Sign
  • Clear Single Sided "SALIDA" Faceplate (with optional adhesive arrows)
  • Mirrored Double Sided "SALIDA" faceplate (extra cost)
  • NiCad Battery - Must connect the battery after installation

Construction

The COMBOELR-SP Combo Edge Lit Salida Sign housing is constructed of die-cast aluminum housing with an etched, clear acrylic panel. Double sided panel comes as mirrored configuration. Aluminum housing color is standard with black and white housing colors available.

Illumination

The COMBOELR-SP Combo Edge Lit Salida Sign series provides a long life LED illumination. The unit is constructed with a red or green high output LED board. Energy consumption is rated at less than 3 watts.  Directional heads have a total of 250 lumen output.

Emergency Operation

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

Battery - Battery Backup

The COMBOELR-SP Combo Edge Lit Salida Sign series is designed with a 3.6V 1800mAh  maintenance-free NiCad battery. The battery is protected by a low voltage cut-off circuit.

Operational Temperature

Temperature Ratings
Standard Option 41°F to 104°F

Photometrics

Total Luminaire Lumens : 250
Input Wattage: 4.6W
Input Voltage: 3.6V
Amps: .042

Download .IES File

Suggested mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 24ft for a 3ft path of egress.

Mounting height of 10ft illuminates 1 footcandle (FC) spaced at 25ft for a 3ft path of egress.

Disclosure:

Spacing is measured in lab condition with an assumed open space, no obstruction and reflection rates of 80 (ceiling) / 50 (walls) / 20 (floor). Actual spacing may vary depending on what environment the fixture is installed in.
Salida Green Combo Edge Lit LED Exit Sign | Recessed - Ceiling and Wall Mount | Adjustable LED Lamps Photometrics

Electrical Components

Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers brown out, overload and short circuit protection.

Installation

The COMBOELR-SP Combo Edge Lit Salida Sign series is suitable for wall or ceiling recessed mounting. Note: the recessed box has a width in excess of 16" so depending on orientation, it may not be compatible with traditional 16" on center framing. Includes field installable directional arrow indicators. All hardware is included.

Mounting Configurations   Mounting Configurations Explained

PDF Download   View Installation Instructions

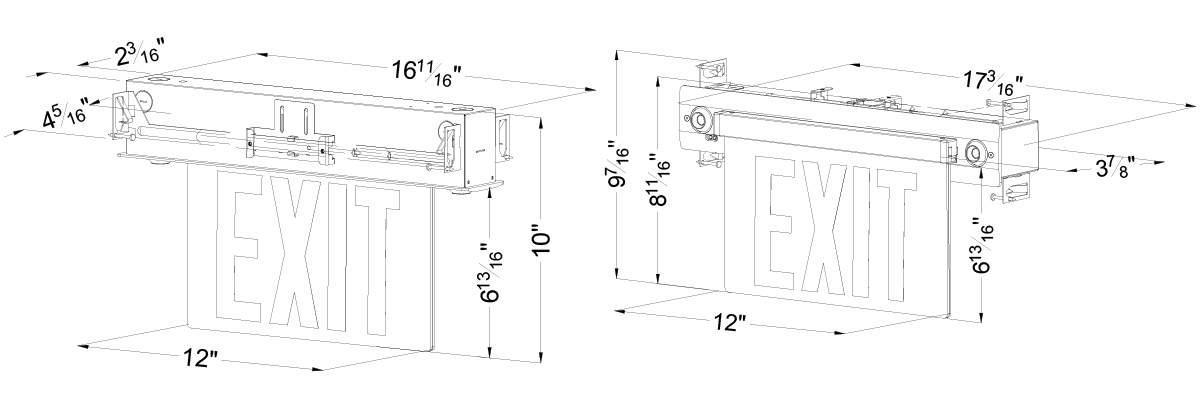

Dimensions

Salida Green Combo Edge Lit LED Exit Sign | Recessed - Ceiling and Wall Mount | Adjustable LED Lamps Dimensions
