Compact Green LED Exit Light Combo | High Output | 180° Adjustable Heads

Base Code: COMBOJR2-G

Items marked FAST SHIP typically ship same day if order is placed before noon

Compact Green LED Exit Light Combo | High Output | 180° Adjustable Heads
Processing...

Get Help
Qty

The COMBOJR2 is a durable and popular Exit Sign / Emergency Light Combo that is ideal for entrances, retail areas, corridors, stairwells, and other places that require emergency lighting. A simple, yet well-built 2-in-1 combination of both exit and emergency lamps. The COMBOJR2 exit sign combo is equipped with a maintenance-free 3.6V NiCad battery that provides 90 minutes of emergency lighting in case of a power failure. It works on either 120 or 277 VAC power. Each lamp head is equipped with 12 SMD LEDs for excellent lighting. Includes 2 faceplates that allow for single or double-sided view; each faceplate has field installable directional chevrons. Optional Remote Head Capable model allows for additional 3.6V remote lamp heads to be connected and wired at a different location where additional lighting is needed – See “Remote Head Capable” section for more information. The optional Self-Testing model is a great solution where manual testing is not possible. The unit will perform the required NFPA testing and indicate the outcome of the test – See the “Self-Testing” section for more information.

Compatible Battery: Battery Backup : BAA-36900 | Remote Head Capable: BAA-3618


Compatible Remote Head(s): RHP-L-3V, RHB-L-3V, and RHB-WPL-3V
To use with with remote heads, please change the Operation Type above to Battery Backup + Remote Head Capable to ensure compatibility. Code at time of checkout must read: COMBOJR2-G-W-RH.

This product has been tested to meet all required U.S. standards by Underwriters Laboratories, Inc. (UL), the most widely recognized U.S. nationally recognized testing laboratory (NRTL).

UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

LED Lighting
This product uses energy efficient and long lasting LED's.

Battery Included

Battery Included
This product contains a battery for backup power. The battery must be connected during installation.

Features

  • UL 924, NEC, OSHA and NFPA 101 Life Safety Code
  • All LED light! No SLA batteries, uses long lasting NiCads that are very low maintenance
  • Rated for Damp Locations
  • Fully adjustable 1.5W LED lamp heads each equipped with 12 series-parallel white LEDs
  • Universal mounting canopy for top installation or flush mount to wall
  • Lightweight with snap-together construction for easy installation
  • LED status indicator
  • Injection molded, impact- and scratch-resistant, corrosion-proof, UL 94 V-0 flame retardant housing
  • Push-to-test switch
  • Universal transformer for 120 or 277 VAC operation

Specifications

Dimensions (May Vary by Model)
Width18"
Height8.125"
Depth1.75"
Weight10.00 lb

What's included?

  • GREEN LED Combo Exit Sign / Emergency Light
  • Two "EXIT" Faceplates (with optional knockout arrows)
  • One Blank Faceplate
  • Mounting Canopy, Installation Instructions & Hardware (Inside Unit)
  • NiCad Battery - Must connect the battery after installation

Construction

The COMBOJR2 series is constructed from injection molded, impact- and scratch-resistant and corrosion-proof UL 94 V-0 flame retardant thermoplastic housing. White housing is standard.

Illumination

Uses two 1.5W LED lamp heads each equipped with 12 series-parallel white LEDs. Lamp heads are on track-and-swivel guides. Glare-free lenses provide redundant light source to ensure performance in emergency situations. EXIT portion uses long-lasting, efficient red or green LEDs.

Emergency Operation

Upon failure of the normal utility power, an internal solid-state transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

Battery - Battery Backup

The COMBOJR2 Combo Exit Sign / Emergency Light is designed with a maintenance-free 3.6V 900mAh NiCad battery (Battery Backup & Self Testing Models) or a 3.6V 1800 mAh battery (Remote Head Capable Models) that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.

Operational Temperature

Temperature Ratings
Standard Option 32°F to 104°F

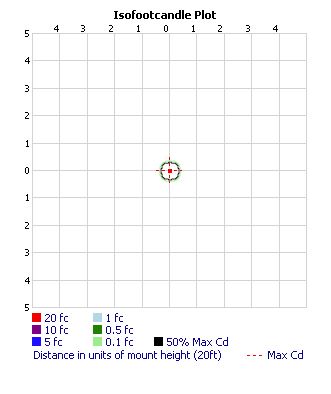

Photometrics

Total Luminaire Lumens : 235lm

Download .IES File

Suggested mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 24ft for a 3ft path of egress.

Mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 18ft for a 6ft path of egress.

Disclosure:

Spacing is measured in lab condition with an assumed open space, no obstruction and reflection rates of 80 (ceiling) / 50 (walls) / 20 (floor). Actual spacing may vary depending on what environment the fixture is installed in.

Compact Green LED Exit Light Combo | High Output | 180° Adjustable Heads Photometrics

Self-Testing Option

Unit continuously monitors the AC power, battery supply voltage, emergency lamp condition and charging circuit. If failure is detected, the indicator will show status and correct when adjusted. Unit will automatically perform NFPA required monthly and annual testing. Refer to user manual for details.

Remote Head Capable Option

The remote head capability option allows the COMBOJR2 unit to supply power to up to two additional LED remote heads. The remote heads would then operate on the same emergency mode as the standard units (see Emergency Operation Section).

Electrical Components

Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid-state circuitry.

Installation

The COMBOJR2 is suitable for surface, wall, and top mounting via included canopy. Unibody housing snaps together with no additional fasteners. Quick connect installation design allows for quick and easy installation. Knock-out chevrons for customized egress signage and field adjustable.

Mounting Configurations   Mounting Configurations Explained

PDF Download   View Installation Instructions

Dimensions

Compact Green LED Exit Light Combo | High Output | 180° Adjustable Heads Dimensions

Customer Questions & Answers
Post a question and have an expert answer



Q Tracy • 12/14/2018, 12:32:07 PM Do you offer this unit with the self-testing and remote heads option?
A Exit Light Co. UPDATE: The COMBOJR2 is available with either the remote head capable option, or the self-testing option.
Q DOUGLAS MYERS • 11/21/2022, 6:36:01 AM does this sign come with the double face option?
A Exit Light Co. Yes, the COMBOJR2-G unit comes with two faceplates so that it can be double sided if needed.
