Canada Approved LED Running Man Combo Exit Sign | Interchangeable Pictogram | Adjustable Lamp Heads
Base Code: COMBORM
Items marked FAST SHIP typically ship same day if order is placed before noon
$60.00
Introducing Canada Approved Running Man LED Exit Sign Combo with High Output Adjustable Lamps sophisticated and practical solution that seamlessly combines quality LED illumination with modern soft corner styling. This attractive exit sign combo is not only eye-catching but also incredibly easy to install and versatile, making it an ideal choice for a wide range of applications. Designed to have interchangeable pictograms to properly mark path of egress. Available in white and black housing.
Included Pictograms:
UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
LED Lighting
This product uses energy efficient and long lasting LED's.
Battery Included
This product contains a battery for backup power. The battery must be connected during installation.
Features
- Approved for Canada Markets
- CSA Listed meets all requirements in C22.2 No. 141-10
- Interchangeable Pictrograms
- 120V-347VAC Operations
- All LED light! No SLA batteries, uses long lasting NiCads that are very low maintenance
- Fully adjustable swivel-mount LED lamp heads each equipped with white high output LEDs
- Universal mounting canopy for ceiling, wall, and side mount
- Lightweight with snap-together construction for easy installation
- LED status indicator
- Injection molded, impact- and scratch-resistant, corrosion-proof, UL 94 V-0 flame retardant housing
- Push-to-test switch
Specifications
| Dimensions (May Vary by Model) | |
| Height | 7.48" |
| Depth | 1.73" |
| Length | 11.61" |
| Weight | 4.00 lb |
What's included?
- Combo Exit Sign / Emergency Light (Lamp Heads Inside Unit)
- 4 Pictograms to select from
- One Blank Faceplate
- Mounting Canopy, Installation Instructions & Hardware (Inside Unit)
- 2 NiCad Batteries - Must connect the battery after installation
Construction
The COMBORM Combo Exit Sign series is constructed from injection molded thermoplastic ABS housing, plastic enclosure 5VA flame retardant housing.
Illumination
Uses two high power 2W LED lamp heads. CCT 6000k. Lamp heads are on track-andswivel guides for maximum adjustability.
Emergency Operation
Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Battery - Battery Backup
The COMBORM Combo Exit Sign series is designed with two maintenance-free 3.6V 1000mAh NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.
Operational Temperature
| Temperature Ratings | |
| Series | Temperature |
| Standard | 50°F to 95°F |
Photometrics
Total Luminaire Lumens : 250
Voltage: 3.6V
Wattage: 4W
Hz: 60
Suggested mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 24ft for a 3ft path of egress.
Disclosure:
Spacing is measured in lab condition with an assumed open space, no obstruction and reflection rates of 80 (ceiling) / 50 (walls) / 20 (floor). Actual spacing may vary depending on what environment the fixture is installed in.
Electrical Components
Universal 120V-347VAC operation. LED display indicates AC/ON. An external push button test switch with battery backup units allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.
Installation
The COMBORM Combo Exit Sign series is suitable for wall, side or ceiling installation via included mounting plate. Snap together design allows for quick and easy installation.
Mounting Configurations Explained
View Installation Instructions

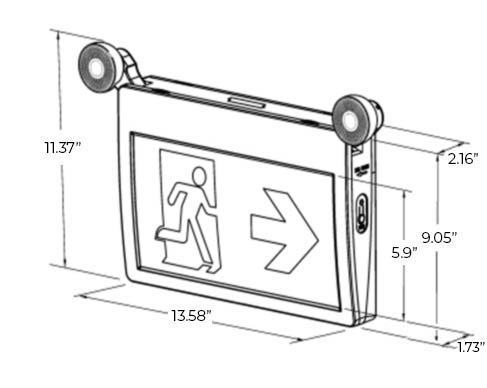

Dimensions
