Red LED Explosion Proof Combo Exit Light | Class 1 Division 1 | Edge Lit | 60 Day Lead Time
Base Code: COMBOX-C1D1-R
Items marked FAST SHIP typically ship same day if order is placed before noon
$3,060.00
The COMBOX-C1D1 Emergency Light is specifically crafted for both hazardous environments and places where explosion-proof products are required. This emergency light seamlessly integrates energy-efficient LED technology with a robust enclosure, making it suitable for specialized locations. UL Listed for multiple Classes and Groups (See “Certification” section for a complete list) This unit offers several levels of protection against the elements, including dust, dirt and water and is designed for use in hostile environments that would otherwise damage ordinary sign components. Constructed of impact and corrosion resistant fiberglass reinforced polycarbonate. Housing is constructed from A360 die-cast aluminum for extra sturdiness.
Class I Division 1 Rated
This product has been tested for hazardous and industrial environments.
LED Lighting
This product uses energy efficient and long lasting LED's.
Explosion Proof
This product is rated Explosion Proof.
Features
- Class I Division 1 Rated
- Multiple UL Listings and Certifications
- UL 844, 924, 1598A, 1598, 8750 (See Full List Below)
- Universal input voltage 120-277VAC
- Internal solid-state transfer switch
- Low Working Wattage for Energy Savings
- Two Adjustable High-lumen Spot Lights
Specifications
| Dimensions (May Vary by Model) | |
| Height | 25.5" |
| Depth | 6.2" |
| Length | 21.5" |
| Weight | 60.00 lb |
What's included?
- LED Explosion Proof Combo Emergency Exit Light
- Installation Instructions
Construction
The COMBOX-C1D1 Emergency Light series is constructed from A360 die-cast aluminum with a gray finish. Housing has 3 (sides and bottom) threaded conduit holes for easy hookup. Designed with tamper-proof screws for unauthorized access to the unit.
Illumination
The COMBOX-C1D1 Emergency Light series is designed with two high-lumen fully adjustable LED lamp heads. Each lamp head is equipped with 12 LEDs putting out a total of 900lm. Beam angle is 90° or 120° and lamp adjustability is from 0° to 180° for optimized center to center spacing.
Emergency Operation
Upon failure of the normal utility power, an internal solid-state transfer switch automatically provides uninterrupted emergency operation for at least 180 minutes. The fully automatic solid-state, two-rate charger initiates recharging a discharged battery within 24 hours.
Battery - Battery Backup
The COMBOX-C1D1 Emergency Light series is designed with a maintenance-free 9.6V 4000 mAh rechargeable Li-Ion battery that provides a minimum emergency duration of 180 minutes. Recharge time of the battery is 24 hours.
Operational Temperature
| Temperature Ratings | |
| Standard | -4°F to 140°F |
Certifications
| Class I, Division 1, Groups C, D |
UL 844 Hazardous Locations | ETL |
| Class I, Division 2, Groups A, B, C, D |
UL 924 Emergency Lighting | NEMA 4X Rated |
| Class II, Division 1, Groups E, F, G |
UL 1598A Marine Outside Type | IP 66 / Wet Locations |
| Class II, Division 2, Groups F, G |
UL 1598 Wet Locations | Impact Level: IK10 (Enclosure) |
| Class III | UL 8750 LED Safety | Impact Level: IK08 (Glass with Metal Guards) |
Electrical Components
Universal 120-277 VAC operation. Unique LED indicator light. Unit offers surge protected, solid state circuitry. Battery backup models offer an external push button test switch, brownout detection, AC lockout, low voltage disconnect and visual LED system fault indicator.
Installation
The COMBOX-C1D1 Emergency Light series is suitable for wall mount installation with its stainless steel mounting brackets. It's recommended to use 5/16" expansion bolts to mount the emergency light (bolts are not included). Threaded conduit feed applications are found around the housing. Please note: Unit is extra heavy; additional assistance is suggested for proper installation.
Mounting Configurations Explained
View Installation Instructions

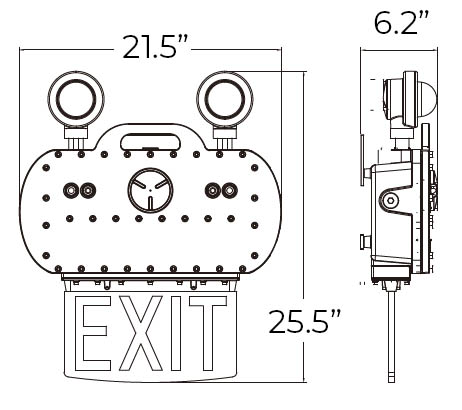

Dimensions
