Constant Power Emergency LED Driver | 5W | 10W | 13W
Base Code: EB-CPD
Items marked FAST SHIP typically ship same day if order is placed before noon
$135.00
The EB-CPD Constant-Power Emergency LED Driver is a reliable and efficient solution designed to provide consistent emergency lighting performance during power outages. Operating on a universal 120-277V, 50/60 Hz input, this driver features a push-to-test switch and LED charge/power indicator to ensure easy code-compliant testing and verification. It includes a long-life, maintenance-free lithium iron phosphate battery, delivering a minimum of 90 minutes of constant power across the full temperature range. Built-in electronic output short and overcurrent protection allows the unit to automatically resume normal operation after a fault is cleared. With a Class 2 compliant output, the EB-CPD ensures safe, low-voltage operation, making it ideal for a wide range of commercial and industrial emergency lighting applications.
UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
LED Lighting
This product uses energy efficient and long lasting LED's.
Features
- Meets or exceeds all NEC and Life Safety Code emergency lighting requirements
- Certified to CEC under Title 20 Regulations
- Output Classification: Class 2 Compliant
- 24 hour maximum battery re-charge time
- 90 Minute emergency operation
- 120-277V 50/60Hz operation
- LED Charge indicator light and push-to-test switch
Specifications
| Dimensions (May Vary by Model) | |
| Width | 2.5"" |
| Height | 1.19" |
| Length | 10.44" - 13.56"" |
| Weight | 5.00 lb |
What's included?
- Constant Power Driver
- Installation Instructions
- Hardware
Construction
The EB-CPD driver features an LED-illuminated, remote-mounted test switch and a low-profile galvanized steel construction. Its compact design allows for easy installation of non-conduit models inside most LED fixtures, making it a versatile and space-saving emergency lighting solution.
Illumination
The EB-CPD driver works with or without an AC driver to convert new or existing LED fixtures into unobtrusive emergency lighting. It provides constant power output during emergency mode operation and is designed to operate with NORMALLY-ON, NORMALLY-OFF, or SWITCHED LOAD fixtures for maximum application flexibility.
Emergency Operation
The EB-CPD driver provides a minimum of 90 minutes of emergency operation, and is Class 2 compliant. Additional safeguards include surge protection per C62.41 (TVS) and input overcurrent protection via a fusible link.
Battery - Battery Backup
The EB-CPD driver is designed with a long life, maintenance free, rechargeable lithium iron phospate battery. Output short/overcurrent protection: Electronic limiting, with normal operation resuming upon removal of fault.
Operational Temperature
| Temperature Ratings | |
| Standard Option | 50°F to 131°F |
Determine Electrical Compatibility
- Verify that the Luminaire LED Driver, where applicable, is Class 2 compliant.
- Verify that the Luminaire LED Lamp(s) have an operating voltage between 20Vdc and 50Vdc range.
- Verify that the Luminaire LED Lamp(s) have a power rating equal to, or greater than, the emergency power rating of the emergency driver under consideration (refer to the Electrical Information section).
Electrical Components
The EB-CPD driver features operates on a universal 120-277V, 50/60 Hz input and includes a charge/power “ON” LED indicator light with a push-to-test switch for code compliance testing. It features electronic output short and overcurrent protection that automatically resets after faults are cleared.
Installation
Non-conduit models are suitable for installation inside or on top of LED fixtures, while conduit models are designed for remote mounting to the LED fixture.
Mounting Configurations Explained
View Installation Instructions

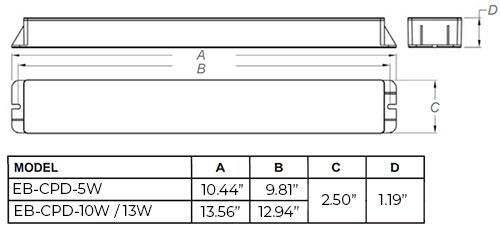

Dimensions
