LED Emergency Light | NEMA 4X Rated | 350 Lumen | 7-10 Day Lead Time
Base Code: EL-4X
Items marked FAST SHIP typically ship same day if order is placed before noon
$440.00
The EL4X Emergency Light combines energy-saving LED technology, with the added safety of a durable enclosure suitable for hazardous location. UL Listed for use in NEMA4X rated areas. The unit offers several levels of protection against the elements, including dust, dirt and water. The emergency light is designed for use in hostile environments that would otherwise damage ordinary components. Constructed of impact resistant fiberglass reinforced polyester. Corrosion-resistant enclosure with one piece, high-impact resistant, UV stabilized polycarbonate lens and molded gasket with stainless steel screws is included.
UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
LED Lighting
This product uses energy efficient and long lasting LED's.
Battery Included
This product contains a battery for backup power. The battery must be connected during installation.
Features
- UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes
- NEMA 4X Rated and IP66 Rated for Ingress Protection
- UL Listed for Wet Locations
- UL Certified for use in food service operations
- 120/277 VAC dual-voltage input
- Internal solid-state transfer switch
- Universal knockout pattern on back
- MR16 Base Style LED Lamps
Specifications
| Dimensions (May Vary by Model) | |
| Height | 6.25" |
| Depth | 6.5" |
| Length | 14.87" |
| Weight | 15.00 lb |
What's included?
- LED NEMA Rated Emergency Light
- Mounting Hardware
- Installation Instructions
Construction
The EL4X Emergency Light series is contructed of reinforced polycarbonate in white or black housing. Corrosion-resistant enclosure with one piece, high impact resistant, UV stabilized polycarbonate lens and molded gasket with stainless steel screws. Tamper-proof hardware is available for unauthorized access to the unit.
Illumination
The EL4X Emergency Light series offers two fully adjustable, ultra bright 3.3W high performance MR-16 base LED lamp heads for optimized center to center spacing.
Emergency Operation
Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates recharging a discharged battery within 24 hours (36 hours on the 54W Models).
Battery - Battery Backup
The EL4X Emergency Light series is designed with a maintenance-free 6V/12V NiCad (15W Models) or 6V/12V maintenance-free sealed lead acid battery (36W and 54W Models) that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.
Operational Temperature
| Temperature Ratings | |
| Series | Temperature |
| 15W Series | 0°C to 50°C / 32°F to 122°F |
| 36W and 54W Series | 10°C to 40°C / 50°F to 104°F |
| Expanded Temperature Rating | -25C° to 50°C / -13°F to 122°F |
Photometrics
Total Luminaire Lumens : 350
Suggested mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 40ft for a 3ft path of egress.
Mounting height of 15ft illuminates 1 footcandle (FC) spaced at 26ft for a 3ft path of egress.
Disclosure:
Spacing is measured in lab condition with an assumed open space, no obstruction and reflection rates of 80 (ceiling) / 50 (walls) / 20 (floor). Actual spacing may vary depending on what environment the fixture is installed in.
Self-Testing Option
Unit will automatically perform NFPA required monthly and annual testing when Self-Testing + Battery Backup Operation is slected. Refer to user manual for details.
Remote Head Capable Option
The EL-4X emergency light offers remote head capability for all operation types. The remote head capability feature enables the EL-4X light to power up to two additional LED remote heads, which will operate in the same emergency mode as the standard units (see Emergency Operation Section). Without any remote heads connected, the 15W model can operate for 3 hours, the 36W model for 7.5 hours, and the 54W model for almost 10 hours. If remote heads are connected, the runtime for all models is reduced to 1.5 hours.
| Wattage | Remote Capacity |
| 15W | 7.8W |
| 36W | 28.8W |
| 54W | 46.8W |
Electrical Components
120/277 VAC operation. Unique bi-color LED indicator light alerts occupant on battery condition (Green-normal, Red-check-battery). Unit offers surge protected, solid state circuitry. Battery backup models offer an external push button test switch, brownout detection, AC lockout, low voltage disconnect and visual LED system fault indicator.
Installation
The EL4X Emergency Light series is suitable for wall mount. Universal knockout pattern on back provided with gasket for watertight seal for back mount.
Mounting Configurations Explained

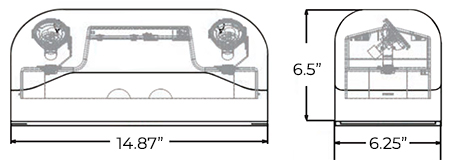

Dimensions
Customer Questions & Answers
Post a question and have an expert answer
Q
Victor Botello • 09/26/2023, 12:23:27 PM
Is the LED Emergency Light | NEMA 4X Rated | 7-10 Day Lead Time Base Code: EL-4X a class 1 div 2 emergency light?
A
Exit Light Co.
No, the EL-4X is not rated for Class 1 Div 2. We do carry the EL-U-C1D2, which has this specification though.
https://www.exitlightco.com/product/EL-U-C1D2.html
