Emergency Light | 18-360W Capacity | NEMA 4X Rated | 6 Week Lead Time
Base Code: EL-BEDT
Items marked FAST SHIP typically ship same day if order is placed before noon
$409.00
*Product in image is a 6V 18W model, actual model might slightly vary.
**Lamps arrive loose to avoid damage during transit.
This industrial emergency light is designed to be affordable, durable and dependable. The NEMA 4X rated fiberglass housing can be used in most damp, wet and hose down areas. Complete with the PulseGuard pulse switching charger that offers superior performance and energy efficiency versus constant voltage chargers. Lamp heads are molded from high impact thermoplastic. Integrated mounting holes ensure proper and secure installation. External Push-to-test switch and monitor LED is standard.
What does this NEMA rating mean?
Type 4X Enclosures constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (windblown dust); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow, splashing water, and hose directed water); that provides an additional level of protection against corrosion; and that will be undamaged by the external formation of ice on the enclosure.
Compatible Battery: 6V, 12V or 24V SLA Battery
ETL US
This item has been tested by ETL US to meet UL924 electrical product safety standards for use in the United States.
Fluorescent
This product produces Fluorescent lighting.
Battery Included
This product contains a battery for backup power. The battery must be connected during installation.
Features
- Made to Order. Please Allow 6 Weeks Lead Time.
- UL 924, NEC requirements and NFPA 101
- NEMA 4X rated fiberglass housing
- Automatic low voltage disconnect
- Universal 120/277 VAC input
- Includes two adjustable 9W PAR36 lamp heads
- Brownout and short circuit protection
- Maintenance-free sealed lead calcium battery
- Maximum working temperature at 104°F
Specifications
| Dimensions (May Vary by Model) | |
| Width | 9.25" |
| Height | 16.5" |
| Depth | 5.5" |
| Weight | 15.00 lb |
What's included?
- NEMA 4X Rated Emergency Light
- SLA Battery (Must connect)
- Installation Instructions
Construction
The EL-BEDT is built with a durable, fully gasketed fiberglass housing rated for NEMA 4 and 4X, providing excellent protection against harsh environments. Its hinged front access panel ensures easy installation and hassle-free maintenance. The unit includes four integrated mounting holes for secure and accurate wall installation. Remote lamp loads connect to the emergency power supply via robust terminal connectors, accommodating larger gauge wires for enhanced installation flexibility. The MR16 NEMA 4X SEA heads are made of sealed die-cast aluminum, effectively preventing moisture infiltration and ensuring reliable performance.
Emergency Operation
Upon failure of the normal utility power, a solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The battery is protected from deep discharge through the use of a low voltage disconnect circuit. Upon resumption of the normal utility power the battery is disconnected from the load and recharged through a solid-state charging circuit. Emergency lighting unit features a fully automatic pulse charger designed to recharge the battery within 24 hours.
Battery - Battery Backup
The EL-BEDT is designed with a maintenance free, sealed valve regulated lead acid battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 48 hours. The maximum battery operating temperature is +104°F and the minimum is +50°F without internal heater option, with the internal heater the minimum operating temperature is -4°F.
Operational Temperature
| Temperature Ratings | |
| Standard Option | 50°F to 104°F |
| Expanded Temperature | -4°F to 104°F |
Photometrics
Total Luminaire Lumens : 200-1866lm
Self-Testing Option
The EL-BEDT self-testing system ensures compliance with fire code requirements by performing automatic monthly 5-minute discharge tests and semi-annual 90-minute discharge tests. These tests verify full battery capacity and recharge capability. Maintenance personnel are informed of system status through a single, intuitive multi-color LED indicator. Additionally, the system is available with optional time delay settings of 0, 5, 10, or 20 minutes, allowing HID lighting to restrike before emergency lighting is fully engaged. Refer to user manual for more details.
Electrical Components
The EL-BEDT features a high-efficiency two-stage charger that ensures precise float voltage control and includes low-voltage disconnect protection. All circuit components are temperature compensated for optimal performance. The charger is equipped with built-in safeguards, including brownout and short circuit protection. A dual diagnostic LED display provides clear indicators for AC/ON and High Charge status. Additionally, an external push-button test switch enables maintenance personnel to quickly assess the unit's operational status and verify lamp load functionality.
Installation
The EL-BEDT NEMA Rated Light is suitable for surface wall mounting and includes integrated mounting feet to ensure proper, secure and accurate wall or ceiling installation onto most surfaces.
Mounting Configurations Explained

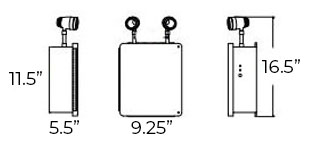

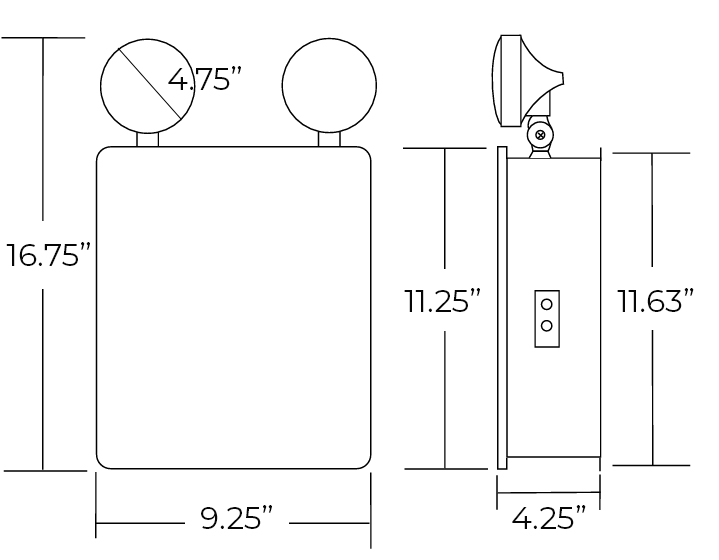

Dimensions
