Emergency LED & Decorative Wall Light | Indoor-Outdoor | 600 Lumens 5000K | Light Sensor
Base Code: EL-DEC
Items marked FAST SHIP typically ship same day if order is placed before noon
$85.00
Introducing the all new EL-DEC Decorative LED Wall Pack. Crafted with a sleek and ultra-compact design, this fixture delivers exceptional performance with two versatile operation modes: AC mode for regular use and emergency mode for added safety. Boasting powerful LEDs, this wall pack is engineered to illuminate corridors, hallways, outdoor spaces, and beyond with brilliant brightness. Elevate any environment with the efficiency and reliability of the EL-DEC Decorative LED Wall Pack.
UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
LED Lighting
This product uses energy efficient and long lasting LED's.
Light Bulb(s) Included
This unit includes light bulb(s).
Features
- cUL Listed, Wet Location Rated
- IP65 Listed for Damp or Wet Location
- Die cast aluminum housing
- UV stabilized polycarbonate lens
- LED Board
- Maintenance-free battery
- Charge rate / power on indicator and test button with emergency ballast option
Specifications
| Dimensions (May Vary by Model) | |
| Height | 5" |
| Depth | 2.1" |
| Length | 5" |
| Weight | 20.00 lb |
What's included?
- Compact Wall Pack Light Fixture
- Installation Instructions & Hardware
- LiFePO4 Battery - Must Connect
Construction
The EL-DEC Decorative LED Pack is designed is constructed from die-cast aluminum with a built-in photocell. Housing is UV resistant.
Illumination
The EL-DEC Decorative LED Pack is designed with vibrant and enduring LEDs. Emitting a crisp color temperature of 5000k, this fixture brings clarity and vitality to any space. Equipped with a photocell sensor, the EL-DEC ensures efficient operation by activating when ambient luminance falls below 10lux. Moreover, it intelligently conserves energy by automatically shutting off when ambient luminance exceeds 30lux.
Emergency Operation
In the event of a power failure, the battery will keep the fixture illuminated for industry standard 90 minutes.
Battery - Battery Backup
The EL-DEC Decorative LED Pack is designed with a maintenance free LiFePO4 3.2V 1500mAh battery that provides a minimum of 90 minutes of battery backup run-time. LiFePO4 batteries are known for their longevity, safety, and efficiency. With LiFePO4 batteries, safety is paramount – their formulation, lithium iron phosphate, is highly resistant to overheating and fire hazards. They are backed by an integrated battery management system (BMS) to prevent overcharge, over-discharge, and short-circuiting, ensuring peace of mind for users.
Operational Temperature
| Temperature Ratings | |
| Standard Option | 41°F to 122°F |
Photometrics
Total Luminaire Lumens :
600lm - AC Mode
250lm - Emergency Mode

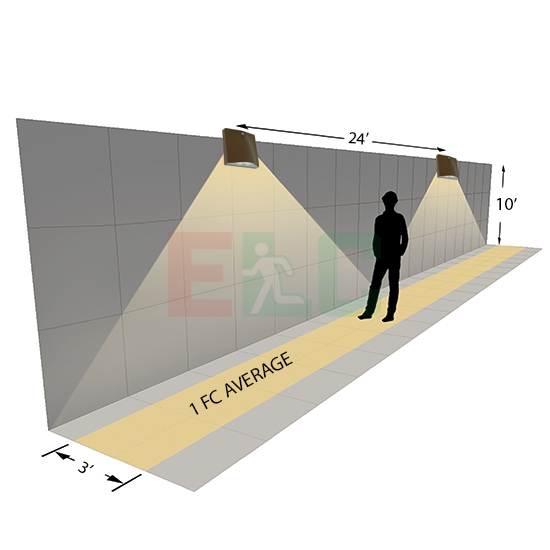

Mounting height of 10ft illuminates 1 footcandle (FC) spaced at 24ft for a 3ft path of egress.
Disclosure:
Spacing is measured in lab condition with an assumed open space, no obstruction and reflection rates of 80 (ceiling) / 50 (walls) / 20 (floor). Actual spacing may vary depending on what environment the fixture is installed in.
Electrical Components
The EL-DEC Decorative LED Pack is designed to work with 120-277V 60Hz systems. The wall light offers two oprational modes: Photocell Sensor and Wall Switch mode.
In the default Photocell Sensor mode, the electrical circuit is always on and the light activates automatically when ambient lighting falls below 10lux and shuts off when it reaches or exceeds 30lux.
Alternatively, Wall Switch mode allows manual control over the light's activation and deactivation via a switched circuit. Both modes function exclusively during normal lighting conditions. In the event of a power outage, the battery backup feature ensures the fixture remains illuminated for at least 90 minutes.
To switch between modes, adjustment of the jumper cable is required. Please consult the installation instructions for detailed guidance on this process.
Installation
The EL-DEC Decorative LED Pack is suitable for wall mount installationn with the ability to have access to the power leads through the back.
Mounting Configurations Explained
View Installation Instructions

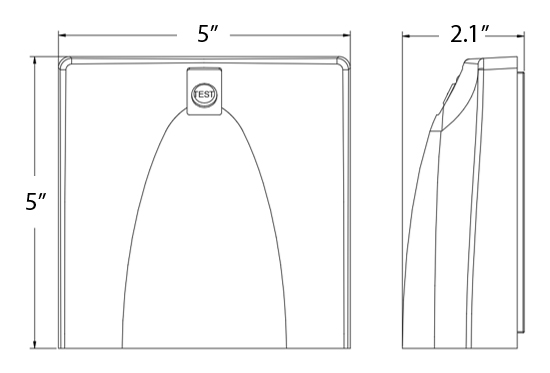

Dimensions
