Adjustable LED Emergency Light | High Output | 4 High Lumen Lamps

Base Code: EL-DECO

Items marked FAST SHIP typically ship same day if order is placed before noon

Adjustable LED Emergency Light | High Output | 4 High Lumen Lamps
Processing...

Get Help

Lead Time: 5-7 Days

Qty

NEW! EL-DECO decorative LED light is the perfect addition to your lighting needs. With four adjustable lamp heads, it is perfect for any room, hallway, theater rooms, warehouse environment etc.. The unit is UL 924, NEC, OSHA and NFPA 101 Life Safety Code approved. It features a unique design with four ultra bright LED lamp heads and an LED indicator light with push-to-test switch. The lightweight, injection molded, 5VA flame retardant thermoplastic housing makes it a convenient and inconspicuous unit. Its universal knock-out pattern allows for multiple types of wall and ceiling installations.

Compatible Battery:  4.8V 2000mAh Ni-MH

This product has been tested to meet all required U.S. standards by Underwriters Laboratories, Inc. (UL), the most widely recognized U.S. nationally recognized testing laboratory (NRTL).

UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

LED Lighting
This product uses energy efficient and long lasting LED's.

Battery Included

Battery Included
This product contains a battery for backup power. The battery must be connected during installation.

Features

  • UL 924, NEC, OSHA and NFPA 101 Life Safety Code
  • Listed for damp location
  • Four fully adjustable ultra bright LED lamp heads
  • LED indicator light with push-to-test switch
  • Lightweight, injection molded, 5VA flame retardant thermoplastic housing
  • Universal 120-277 VAC operation
  • Universal mounting plate
  • Short circuit, voltage surge, brown out and low battery voltage disconnect protected

Specifications

Dimensions (May Vary by Model)
Height6.19"
Depth3.13"
Length9.69"
Weight6.00 lb

What's included?

  • White or Black All LED Emergency Light
  • Installation Instructions & Hardware
  • Ni-MH Battery - Must connect the battery after installation (Located inside unit)

Construction

The EL-DECO series is constructed from injection-molded, engineer-grade, 5VA flame retardant thermoplastic. White housing is standard, also available in black housing.

Illumination

The EL-DECO emergency lamps use long-lasting, efficient ultra bright white LEDs. Fully adjustable 1.0W LED lamp heads Features unique all inclusive lamp, reflector, and lens assembly.

Emergency Operation

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

Battery - Battery Backup

The EL-DECO Emergency Lights series is designed with a maintenance-free 4.8V 2000mAh Ni-MH battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours. Operational temperature range is 50°F to 122°F.

Photometrics

Total Luminaire Lumens : 416lm
Input Wattage: 4.46W
Input Voltage: 4.8V
Amps: .928

Download .IES File

Suggested mounting height of 10ft illuminates 1 footcandle (FC) spaced at 42ft for a 3ft path of egress.

Mounting height of 12ft illuminates 1 footcandle (FC) spaced at 50ft for a 3ft path of egress.

Mounting height of 15ft illuminates 1 footcandle (FC) spaced at 44ft for a 3ft path of egress.

Disclosure:

Spacing is measured in lab condition with an assumed open space, no obstruction and reflection rates of 80 (ceiling) / 50 (walls) / 20 (floor). Actual spacing may vary depending on what environment the fixture is installed in.

Adjustable LED Emergency Light | High Output | 4 High Lumen Lamps Photometrics

Self-Testing Option

Continuously monitors the AC power, battery supply voltage, emergency lamp and charging circuit. The multi-color LED indicator light will indicate failure and adjust when it has been corrected. Unit will automatically perform NFPA required monthly and annual testing. Refer to user manual for details.

Electrical Components

Universal voltage input 120-277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit.

Installation

The EL-DECO is suitable for wall mount application. Universal knockout pattern on back plate for surface mount and conduit applications.

Mounting Configurations   Mounting Configurations Explained

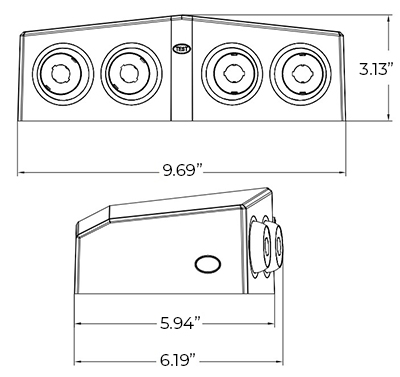

Dimensions

Adjustable LED Emergency Light | High Output | 4 High Lumen Lamps Dimensions
