LED Compact Emergency Light | Europe Approved | 180 Minute Run Time | 220-240V 50/60Hz
Base Code: EL-EU
Items marked FAST SHIP typically ship same day if order is placed before noon
$49.00
Introducing the new EL-EU emergency light, featuring a sleek white housing, European approval, 180 minute runtime, and universal input voltage of 220-240V 50/60Hz.
UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
LED Lighting
This product uses energy efficient and long lasting LED's.
Battery Included
This product contains a battery for backup power. The battery must be connected during installation.
Features
- 3-Hour Runtime
- IP40 Rated
- 220-240V 50/60Hz
- Listed for damp locations
- LiFePO4 Battery
- Thermoplastic Housing
- AC On indicator light and push-to-test button
Specifications
| Dimensions (May Vary by Model) | |
| Height | 4.25" |
| Depth | 2.16" |
| Length | 7.32" |
| Weight | 10.00 lb |
What's included?
- Emergency Light
- Installation Instructions & Hardware
- Ni-MH Battery - Must connect the battery after installation
Construction
The EL-EU Emergency Light series is constructed from injection molded thermoplastic ABS. Standard housing finish is white.
Illumination
The EL-EU Emergency Light features SMD 2W LEDs with a color temperature of 6000k (cool white). CRI measures greater than 75.
Emergency Operation
Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 3 hours. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Battery - Battery Backup
The EL-EU Emergency Light is designed with a maintenance-free 3.6V 1500mAh NI-MH batterythat provides a minimum emergency duration of 180 minutes. Recharge time of the battery is 24 hours.
Operational Temperature
| Temperature Ratings | |
| Standard Option | 32°F to 104°F |
Photometrics
Total Luminaire Lumens : 220
Suggested mounting height of 8ft illuminates 1 footcandle (FC) spaced at 31ft for a 3ft path of egress (Wide Lens)
Mounting height of 8ft illuminates 1 footcandle (FC) spaced at 45ft for a 3ft path of egress (Narrow Lens)
Disclosure:
Spacing is measured in lab condition with an assumed open space, no obstruction and reflection rates of 80 (ceiling) / 50 (walls) / 20 (floor). Actual spacing may vary depending on what environment the fixture is installed in.
Electrical Components
Universal voltage input 220-240V 50/60Hz operation. LED display indicates AC/ON. An external push button test button on battery backup units allows maintenance personnel to quickly determine the operational status of the unit.
Installation
The EL-EU Running Emergency Light series is designed for wall or ceiling mounting. It comes along with all necessary hardware. Features an innovative snap together design that allows for fast and easy installation.
Mounting Configurations Explained
View Installation Instructions

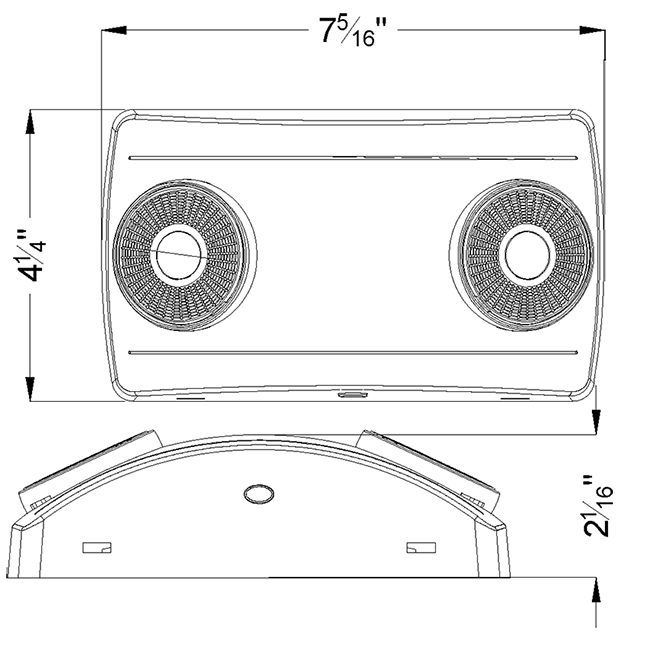

Dimensions
