High Output LED Emergency Light | 650 Lumen LED | 67 FT Spacing
Base Code: EL-M2-HO
![High Output LED Emergency Light | 650 Lumen LED | 67 FT Spacing](graphics/en-US/cssui/blank.gif)
![Processing... Processing...](themes/levels/images/img_ajax_processing.gif)
Compatible Battery: B6V4A
![This product has been tested to meet all required U.S. standards by Underwriters Laboratories, Inc. (UL), the most widely recognized U.S. nationally recognized testing laboratory (NRTL).](https://d11a0uwhosx1i3.cloudfront.net/mm5/graphics/00000001/web/ul_logo.jpg)
UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
![LED Lighting](https://d11a0uwhosx1i3.cloudfront.net/mm5/graphics/00000001/web/led_logo.gif)
LED Lighting
This product uses energy efficient and long lasting LED's.
![Battery Included](https://d11a0uwhosx1i3.cloudfront.net/mm5/graphics/00000001/web/battery_included_logo.gif)
Battery Included
This product contains a battery for backup power. The battery must be connected during installation.
Features
- UL 924, NEC, OSHA and NFPA 101 Life Safety Code
- Damp location listed
- Lumen: 650lm
- 120/277 VAC operation
- Two fully adjustable, glare-free LED lighting heads
- Push-to-test switch and status indicator
- Injection-molded, high impact, UV-stabilized, UL 94 VO thermoplastic housing
- Lightweight with snap-together construction for easy installation
- Universal mounting plate with quick-connect feature
Specifications
Dimensions (May Vary by Model) | |
Height | 4.92" |
Depth | 2.8" |
Length | 12.59" |
Weight | 3.00 lb |
What's included?
- White All LED Emergency Light
- Installation Instructions & Hardware
- 6V 4.5mAh Battery - Must connect the battery after installation (Located inside unit)
Construction
The EL-M2-HO series is constructed from injection-molded thermoplastic ABS housing, UL 94V-0 flame rating. White housing is standard.
Illumination
The EL-M2-HO emergency light features two 3 piece super bright LEDs providing 650 lumen. Lamp heads are on track-and-swivel guides. Glare-free lenses provide clear light source to ensure performance in emergency situations.
Emergency Operation
Upon failure of the normal utility power, an internal solid-state transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Battery - Battery Backup
The EL-M2-HO Emergency Light series is designed with a maintenance-free 6V 4.5mAh sealed lead acid battery;that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.
Operational Temperature
Temperature Ratings | |
Standard Option | 32°F to 104°F |
Photometrics
Total Luminaire Lumens : 650
Wattage: 4W
Suggested mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 67ft for a 3ft path of egress.
Mounting height of 10ft illuminates 1 footcandle (FC) spaced at 67ft for a 3ft path of egress.
Disclosure:
Spacing is measured in lab condition with an assumed open space, no obstruction and reflection rates of 80 (ceiling) / 50 (walls) / 20 (floor). Actual spacing may vary depending on what environment the fixture is installed in.
![High Output LED Emergency Light | 650 Lumen LED | 67 FT Spacing Photometrics](https://d11a0uwhosx1i3.cloudfront.net/IES/EL-M2-HO1.jpg)
Electrical Components
Universal voltage input 120-277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.
Installation
The EL-M2-HO is suitable for wall or ceiling installation via included mounting plate. Snap together design allows for quick and easy installation.
Mounting Configurations Explained

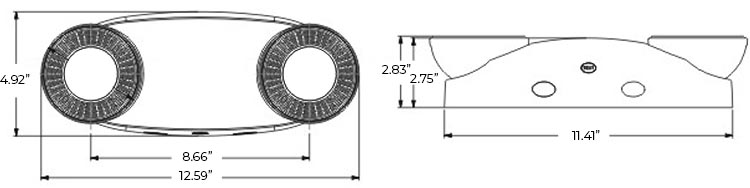

Dimensions
![High Output LED Emergency Light | 650 Lumen LED | 67 FT Spacing Dimensions](https://d11a0uwhosx1i3.cloudfront.net/mm5/graphics/00000001/1/EL-M2-HO.jpg)
