LED Recessed Emergency Light | Ceiling Mount | Adjustable Lamps
Base Code: EL-RPLED
Items marked FAST SHIP typically ship same day if order is placed before noon
$165.00
NEW! EL-RPLED decorative recessed LED light is the perfect addition to your lighting needs. Two adjustable lamp heads and thin profile, makes it the perfect emergency light for any types of rooms, hallways, theater rooms, warehouse environments etc. The EL-RPLED is UL 924, NEC, OSHA and NFPA 101 Life Safety Code approved. It features a unique design with 2 pull-out ultra bright LED lamp heads and an LED indicator light with push-to-test button. The lightweight, injection molded, 5VA flame retardant thermoplastic housing makes it a convenient and inconspicuous unit. It is designed to work with both drywall and ceiling mount installations.
Easily switch trim plates that suits the installation:
Compatible Battery: 4.8V 2000mAh Ni-MH
UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
LED Lighting
This product uses energy efficient and long lasting LED's.
Battery Included
This product contains a battery for backup power. The battery must be connected during installation.
Features
- UL 924, NEC, OSHA and NFPA 101 Life Safety Code
- Listed for damp location
- Adjustable ultra bright LED lamp heads
- LED indicator light with push-to-test switch
- Lightweight, injection molded, 5VA flame retardant thermoplastic housing
- Universal 120-277 VAC operation
- Short circuit, voltage surge, brown out and low battery voltage disconnect protected
Specifications
| Dimensions (May Vary by Model) | |
| Height | 6.13" |
| Length | 11.81" |
| Weight | 6.00 lb |
What's included?
- White or Black All LED Emergency Light

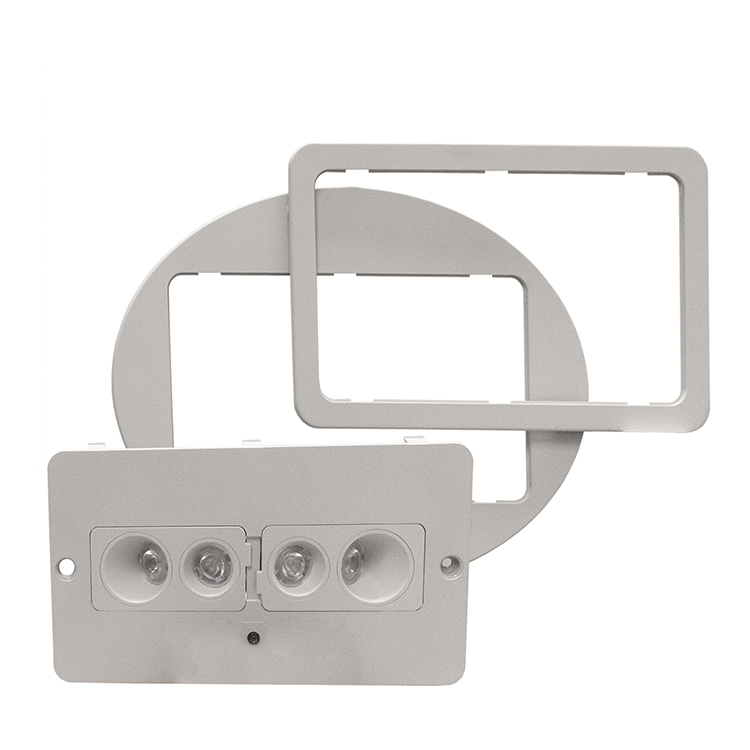

- 2 trim plates (Oval and Rectangle)
- Installation Instructions & Hardware
- Ni-MH Battery - Must connect the battery after installation (Located inside unit)
Construction
The EL-RPLED Recessed Emergency Light is constructed from injection-molded, engineer-grade, 5VA flame retardant thermoplastic. White housing is standard, also available in black housing. 2 trim plates are included to convert the light to an oval or rectangle shape.
Illumination
The EL-RPLED Recessed Emergency Light use long-lasting, efficient ultra bright white LEDs. Fully adjustable 1.0W LED lamp heads Features unique all inclusive lamp, reflector, and lens assembly.
Emergency Operation
Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Battery - Battery Backup
The EL-RPLED Recessed Emergency Light is designed with a maintenance-free 4.8V 2000mAh Ni-MH battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours. Operational temperature range is 50°F to 122°F.
Photometrics
Total Luminaire Lumens : 396lm
Input Wattage: 4.5W
Input Voltage: 4.8V
Amps: .936
Suggested mounting height of 10ft illuminates 1 footcandle (FC) spaced at 50ft for a 3ft path of egress.
Mounting height of 12ft illuminates 1 footcandle (FC) spaced at 50ft for a 3ft path of egress.
Mounting height of 15ft illuminates 1 footcandle (FC) spaced at 40ft for a 3ft path of egress.
Disclosure:
Spacing is measured in lab condition with an assumed open space,
no obstruction and reflection rates of 80 (ceiling) / 50 (walls) / 20 (floor).
Actual spacing may vary depending on what environment the fixture is installed
in.
Self-Testing Option
Continuously monitors the AC power, battery supply voltage, emergency lamp and charging circuit. The multi-color LED indicator light will indicate failure and adjust when it has been corrected. Unit will automatically perform NFPA required monthly and annual testing. Refer to user manual for details.
Electrical Components
Universal voltage input 120-277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit.
Installation
The EL-RPLED is suitable with drywall or drop ceiling mount installations.
Mounting Configurations Explained

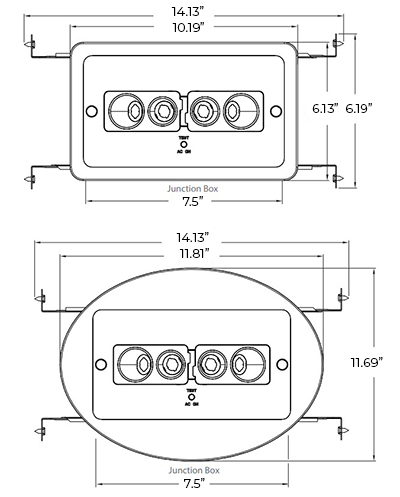

Dimensions
View Common Questions or Ask Your Own Below
Post a question and have an expert answer
Q
Brian Bumann • 09/20/2023, 3:07:49 PM
Can the LED recessed emergency lights be installed in a drywall fire rated ceiling assembly
A
Exit Light Co.
The EL-RPLED unit is designed for drywall installation, however if the ceiling is airtight, these units would compromise that. This unit is not IC rated.
We do carry an IC-rated recessed emergency light. https://www.exitlightco.com/product/EL-RG6.html
