LED Emergency Light | White Housing | Fixed Lamps

Base Code: EL-FX

Items marked FAST SHIP typically ship same day if order is placed before noon

LED Emergency Light | White Housing | Fixed Lamps
Processing...

Qty

Fixed white housing LED emergency light for bright illumination and energy-savings. Easy installation with back mounting plate. Long lasting, low maintenance 3.6V NiCad battery. Works on either 120 or 277 VAC.
This product has been tested to meet all required U.S. standards by Underwriters Laboratories, Inc. (UL), the most widely recognized U.S. nationally recognized testing laboratory (NRTL).

UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

LED Lighting
This product uses energy efficient and long lasting LED's.

Battery Included

Battery Included
This product contains a battery for backup power. The battery must be connected during installation.

Features

  • UL 924, NEC, OSHA and NFPA 101 and 70 Life Safety Code
  • Listed for damp locations
  • 2x12 SMT LEDs
  • Universal transformer for 120 or 277 VAC operation
  • Injection-molded, engineering grade, 5VA flame retardant, high impact thermoplastic housing
  • Quick Disconnect Back Plate
  • Push-to-test switch & Charge rate / Power on LED indicator light

Specifications

Dimensions (May Vary by Model)
Height5.10"
Depth2.3"
Length11.8"
Weight5.00 lb

What's included?

  • White Housing All LED Emergency Light
  • Installation Instructions & Hardware
  • NiCad Battery - Must connect the battery after installation (Located inside unit)

Construction

The EL-FX Emergency Lighting series is constructed from injection-molded thermoplastic ABS housing, UL 94V-0 flame rating. Friendly configuration design for quick installation. Back housing has a universal J-Box mounting patter. White housing is standard.

Illumination

EL-FX heads use long-lasting, efficient ultra bright white SMT LEDs (2x12pcs). The lens design provides better optic performance.

Emergency Operation

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 100 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

Battery - Battery Backup

The EL-FX Emergency Light is designed with a maintenance-free 3.6V NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.

Operational Temperature

Temperature Ratings
Standard Option32°F to 104°F

Photometrics

Total Luminaire Lumens : 164
Input Wattage: 2W

Download .IES File

Suggested mounting height of 7.7ft illuminates 1 footcandle (FC) spaced at 15ft for a minimum of a 3ft path of egress.

Disclosure:

Spacing is measured in lab condition with an assumed open space, no obstruction and reflection rates of 80 (ceiling) / 50 (walls) / 20 (floor). Actual spacing may vary depending on what environment the fixture is installed in.



LED Emergency Light | White Housing | Fixed Lamps Photometrics

Electrical Components

Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.

Installation

The EL-FX is suitable for wall or ceiling mount. Snap together design allows for quick and easy installation. Features very easy to use quick disconnect plate.

Mounting Configurations   Mounting Configurations Explained

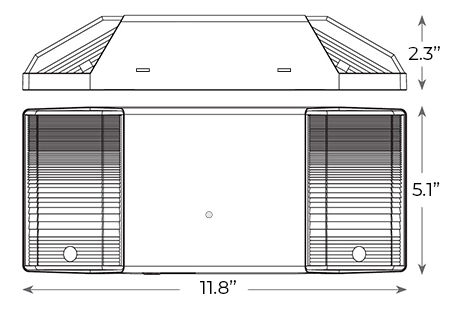

Dimensions

LED Emergency Light | White Housing | Fixed Lamps Dimensions

Customer Questions & Answers
Post a question and have an expert answer



Q Jeff Daugherty • 10/01/2019, 9:02:58 PM Hi, I was wondering if this type of fixture illuminates constantly and if power is lost turns on?
A Exit Light Co. This unit only turns on when the power goes out.
Q Lee • 01/08/2024, 1:08:59 PM Where can I find replacement battery packs when the batts in these units reach end of life?
A Exit Light Co. Please contact customer service directly to purchase replacement batteries. We will be happy to assist.
