LED Constellation Light Fixture | Wall Mount | Small Full Cutoff | Wall Pack | 2 Week Lead Time
Base Code: ELF-CON
Items marked FAST SHIP typically ship same day if order is placed before noon
$378.00

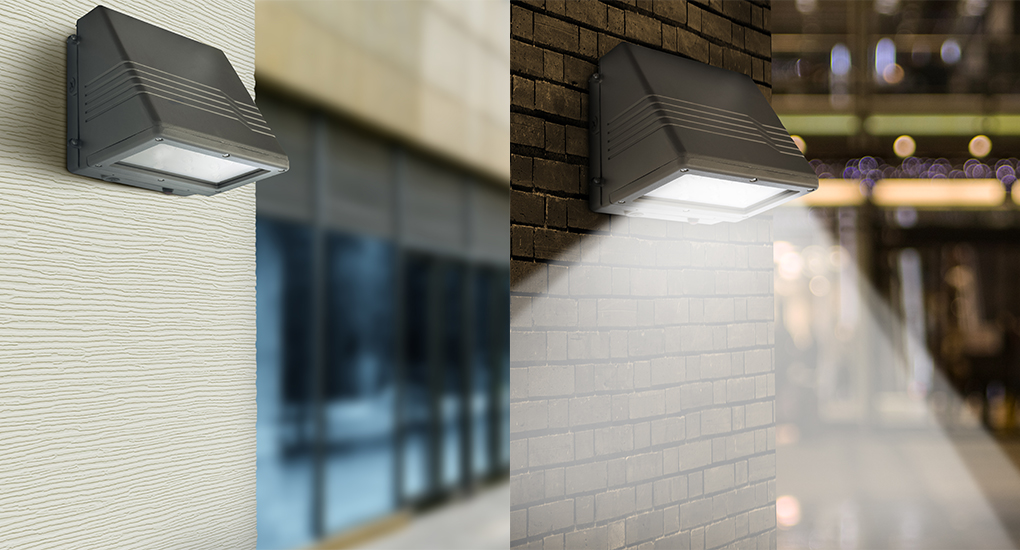

The ELF-CON LED light fixture cutoff wall pack luminaire is available with a choice of optical distributions designed to replace HID lighting systems up to 175w MH (metal halide) or HPS (high pressure sodium). Typical wall mounted lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities. Mounting heights of 8 to 15 feet can be used based on light level and uniformity requirements.
CSA Certified
CSA certification, issued by the Canadian Standards Association, is a mark of quality and safety. When a product bears the CSA-approved mark, it signifies that it has undergone rigorous testing for potential electrical hazards and inspection to ensure it meets the highest safety standards.
LED Lighting
This product uses energy efficient and long lasting LED's.
Light Bulb(s) Included
This unit includes light bulb(s).
Features
- Wall Pack LED Fixture
- CSA Listed for Damp or Wet Location
- Die cast aluminum housing
- UV stabilized polycarbonate lens
- LED Board
- Maintenance-free battery ballast for emergency operation units
- Charge rate / power on indicator and test button with emergency ballast option
- This product is custom made-to-order with a 2 week lead-time. As such it is final sale and no returns are allowed.
Specifications
| Dimensions (May Vary by Model) | |
| Width | 9.5" |
| Height | 8.62" |
| Length | 8.75" |
| Weight | 20.00 lb |
What's included?
- Bronze Wall Pack Light Fixture
- Installation Instructions & Hardware
Construction
Designed with a die-cast hinged and gasketed aluminum front frame and housing with 1/2" coin plugs. All hardware is nickel-plated stainless steel. The housing is photocell adaptable.
Illumination
The ELF-CON is designed with and aluminum board LED technology providing 1,300-2,400 lumen. Features a tempered clear flat glass lens.
Emergency Operation
In the event of a power failure, the emergency battery ballast option will keep the fixture illuminated for industry standard 90 minutes. Emergency ballast must be selected upon ordering.
Battery - Battery Backup
The ELF-CON has the option for a 90-minute battery backup ballast to be installed. In case of a power outage, the wall pack will illuminate for a minimum of 90 minutes. This option is currently only available with the 120-277V operation type.
Operational Temperature
| Temperature Ratings | |
| Standard Option | -40°F to 122°F |
| Cold Start Battery | -4°F to 122°F |

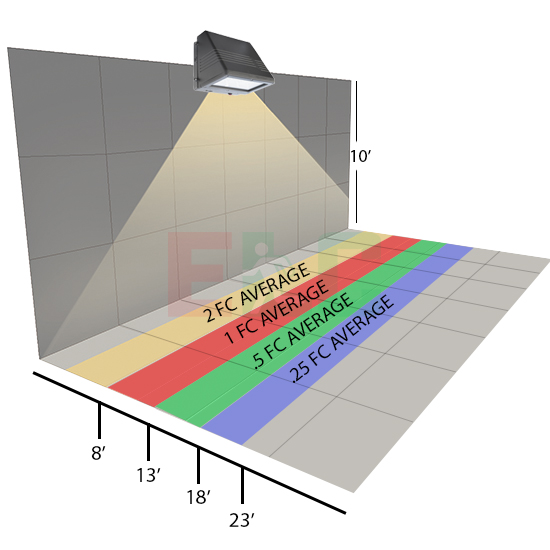

Photometrics
Total Luminaire Lumens : 1,300-2,400
Input Wattage: 15-22W
For Additional IES Files Please Contact Us
Electrical Components
The ELF-CON is designed to work with 120-277V 50/60Hz systems. Optional 15W or 22W system.
Installation
The ELF-CON is designed with a cast-in template that can be directly mounted over a 4" recessed outlet box or 1/2" surface conduit.
Mounting Configurations Explained

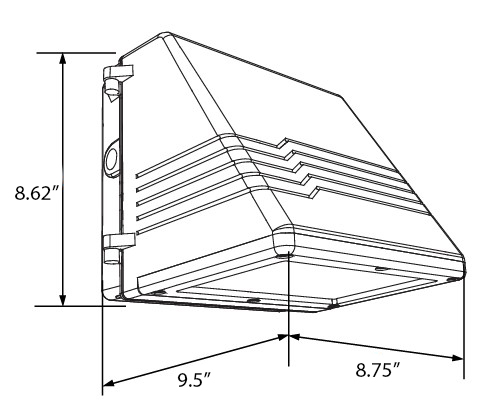

Dimensions
