SALIDA Edge Lit Red LED Exit Sign | Recessed Mount Assembly | Ceiling and Wall Installation
Base Code: ELR-R-SP
Items marked FAST SHIP typically ship same day if order is placed before noon
$115.00
This Red LED Edge Lit SALIDA Sign is suitable for ceiling mount installation providing a slick and clean look. When purchasing this unit, a recess box is assembled with the exit sign panel that allows it to be installed recessed into the ceiling (instructions included). The edge lit panel is constructed of high-grade acrylic with customizable directional arrows to point towards exit direction. The removable front cover makes installation and maintenance headache-free!
Compatible Battery: 3.6V 1800mAh
UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
LED Lighting
This product uses energy efficient and long lasting LED's.
Battery Included
This product contains a battery for backup power. The battery must be connected during installation.
Features
- UL 924, NEC, OSHA and NFPA 101 Life SafetyCode
- SALIDA Faceplate
- Listed for damp location
- Recessed Mounting Only
- Aluminum housing with high grade acrylic face
- Field Installable Arrows for Left, Right or Both directions.
- Long life LED illumination
- Test switch and charge rate indicator on battery backup models
- Dual 120/277 volt operation
Specifications
| Dimensions (May Vary by Model) | |
| Height | 6.8" |
| Depth | 4.3" |
| Length | 15.2" |
| Weight | 10.00 lb |
What's included?
- Red LED Exit Sign
- Recessed Mounting Kit
- Clear Single Sided "SALIDA" Faceplate (with optional adhesive arrows)
- Mirrored Double Sided "SALIDA" faceplate
- Installation Instructions & Hardware
- NiCad Battery - Must connect the battery after installation
Construction
The ELR-SP Salida Edge Lit Exit Sign series housing is contructed from premium-grade, extruded aluminum. Easily access the battery and internals with detachable trim piece. Standard housing color is aluminum with other choices available.
Illumination
The ELR-SP Salida Edge Lit Exit Sign series has ultra bright, emergency efficient, and long lasting LEDs. The UV stabilized ultra clear acrylici edgelit panel provides consistent and uniform illumination.
Emergency Operation
Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Battery - Battery Backup
The ELR-SP Salida Edge Lit Exit Sign series is designed with a 4.8V maintenance-free NiCad battery. The battery is protected by a low voltage cut-off circuit.
Operational Temperature
| Temperature Ratings | |
| Standard Option | 32°F to 122°F |
Remote Head Capable Option
The remote head capability option allows the ELR-SP sign to supply power to up to two single or one double 3.6V (2.8W Max) LED remote heads. The remote heads would then operate on the same emergency mode as the standard units. This unit only supports LED remote heads.
Electrical Components
Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers brown out, overload and short circuit protection.
Installation
The ELR-SP Salida Edge Lit Exit Sign series is suitable for ceiling and wall recessed mounting and compatible with drywall or dropceiling mount installations. Includes field installable directional arrow indicators. All hardware is included.
Mounting Configurations Explained

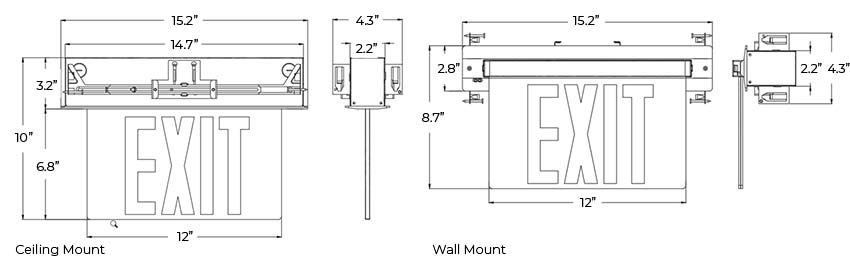

Dimensions
