Green LED Edge Lit Exit Sign | Explosion Proof | Class 1 Division 2 | 60 Day Lead Time

Base Code: ELSMX-C1D2-G

Items marked FAST SHIP typically ship same day if order is placed before noon

Green LED Edge Lit Exit Sign | Explosion Proof | Class 1 Division 2 | 60 Day Lead Time
Processing...
$525.00

Lead Time:
60 Day

Qty

The ELSMX-C1D2 Edge Lit Exit Sign is specifically crafted for both hazardous environments and places where explosion-proof products are required. This exit sign seamlessly integrates energy-efficient LED technology with a robust enclosure, making it suitable for specialized locations. UL Listed for multiple Classes and Groups (See “Certification” section for a complete list) This unit offers several levels of protection against the elements, including dust, dirt, and water. It is designed for use in hostile environments that would otherwise damage ordinary sign components. Housing is constructed from die-cast aluminum for extra sturdiness.
Class 1 Division 2 Rated

Class I Division 2 Rated
This product has been tested for hazardous and industrial environments.

LED Lighting

LED Lighting
This product uses energy efficient and long lasting LED's.

This Product Is Explosion Proof

Explosion Proof
This product is rated Explosion Proof.

Features

  • Class I Division 2 Rated
  • Multiple UL Listings and Certifications
  • UL 924, UL 844, ABS (See Full List Below)
  • Universal input voltage 120-277VAC 50/60Hz
  • Internal solid-state transfer switch
  • Low Working Wattage for Energy Savings
  • Two Adjustable High-lumen Spot Lights

Specifications

Dimensions (May Vary by Model)
Height11.08"
Depth1.82"
Length16.12"
Weight20.00 lb

What's included?

  • Green LED Explosion Proof Exit Sign
  • Mounting Hardware
  • Installation Instructions

Construction

The ELSMX-C1D2 Edge Lit Exit Sign series is constructed from die-cast aluminum with a silver finish. Designed with tamper-proof screws for unauthorized access to the unit. EXIT faceplate is constructed from high-grade tempered glass.

Illumination

The ELSMX-C1D2 Edge Lit Exit Sign series is designed with two function modes:

1 - EXIT portion stays illuminuated at all times, under normal power or battery backup.

2 - EXIT portion only illuminates when there is a power outage.

Emergency Operation

Upon failure of the normal utility power, an internal solid-state transfer switch automatically provides uninterrupted emergency operation for at least 180 minutes. The fully automatic solid-state, two-rate charger initiates recharging a discharged battery within 24 hours.

Battery - Battery Backup

The ELSMX-C1D2 Edge Lit Exit Sign series is designed with a maintenance-free, non-replaceable Li-Ion battery that provides a minimum emergency duration of 180 minutes. Recharge time of the battery is 24 hours.

Operational Temperature

Temperature Ratings
Standard -4°F to 140°F

Certifications

UL 844 Hazardous Locations Class II, Division 2, Groups F, G
Class I, Division 2, Groups A, B, C, D
Class III
Class II, Division 1, Groups E, F, G
UL 924

Electrical Components

Universal 100-277 VAC operation. Unique LED indicator light. Unit offers surge-protected, solid-state circuitry. Battery backup models offer an external push button test switch, brownout detection, AC lockout, low voltage disconnect, and visual LED system fault indicator.

Installation

The ELSMX-C1D2 Edge Lit Exit Sign series is designed for wall mount, pendant mount, and pipe mounting. Stainless-steel sling is included with brackets.

Mounting Configurations   Mounting Configurations Explained

PDF Download   View Installation Instructions

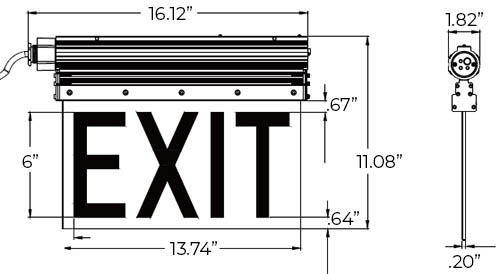

Dimensions

Green LED Edge Lit Exit Sign | Explosion Proof | Class 1 Division 2 | 60 Day Lead Time Dimensions
