EL-XLL Series combines LED performance and dependability with a compact, rugged 20-gauge steel housing. Now offered with LED adjustable head lamps; no more incandescent lamps. The corrosion resistant unit features extended amounts of options to meet almost any type of lighting needs.


This product has been tested to meet all required U.S. standards by Underwriters Laboratories, Inc. (UL), the most widely recognized U.S. nationally recognized testing laboratory (NRTL).

UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

LED Lighting
This product uses energy efficient and long lasting LED's.

Battery Included

Battery Included
This product contains a battery for backup power. The battery must be connected during installation.

Features

  • Meet UL 924 Standards, meets or exceeds NEC, OSHA and NFPA Life Safety Code 101 standards.
  • NYC Approved
  • Assembled in the USA
  • Dual 120/277 VAC input
  • Rugged 20 gauge steel housing in corrosion resistant epoxy powder coated finish
  • Surge protected, solid state circuitry
  • Time delay (optional) allows lamp heads to stay illuminated for 15 minutes following restoration of AC power
  • Indoor use only; operating temperature: 50°F to 104°F
  • Maintenance-free battery
  • Battery lockout circuit allows battery connection even when AC power is not available
  • Low voltage disconnect (LVD)
  • Charge rate / power on indicator

Specifications

Dimensions (May Vary by Model)
Width10-12"
Height9.9-14.9"
Depth2-3"
Weight15.00 lb

What's included?

  • White or Black Steel Emergency Light
  • Installation Instructions & Hardware
  • Battery - Must connect the battery after installation (Located inside unit)

Construction

the EL-XLL series is die-formed 20-gauge steel housing with epoxy powder coat finish. White finish is standard. Black finish is optional. Universal J-box mounting pattern and keyhole slots provided for simple installation. Knockouts are provided on top, back, and sides for easy wire entry. Can also be shelf mounted – ordered separately. Lamp heads are constructed of high impact thermoplastic in a color matching the finish of the enclosure. Lamp heads feature a unique twist locking collar that securely holds the lens and facilitates quick and easy re-lamping.

Illumination

Fully adjustable, lamp heads allow for maximum light to be delivered to the path of egress with attractive PAR 18 5W or 7W LEDs. Up to 4 lamp heads (limited by unit's total capacity) may be installed on each emergecny light.

Emergency Operation

Charging system includes low voltage disconnect (LVD), temperature compensation, AC lockout, brownout protection, AC indicator lamp, and test switch. High charge and AC ready.

Battery - Battery Backup

Maintenance-free, sealed lead acid or NiCad battery provides 90 minute emergency run time. Features a brownout circuit that monitors the flow of AC current to the unit and triggers the emergency lighting system once a set reduction of AC power occurs. This dip in voltage will cause many fixtures to extinguish causing loss of normal lighting even though a total power failure has not occurred.

Operational Temperature

Temperature Ratings
Standard Option50°F to 104°F

Photometrics

Download .IES File

6V5W Model: Suggested mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 53ft for a 3ft path of egress.

6V5W Model: Mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 50ft for a 6ft path of egress.

12V5W Model: Suggested mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 101ft for a 3ft path of egress.

12V5W Model: Mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 96ft for a 6ft path of egress.

12V7W Model: Suggested mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 104ft for a 3ft path of egress.

12V7W Model: Mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 99ft for a 6ft path of egress.

Disclosure:

Spacing is measured in lab condition with an assumed open space, no obstruction and reflection rates of 80 (ceiling) / 50 (walls) / 20 (floor). Actual spacing may vary depending on what environment the fixture is installed in.

Steel Housing LED  Emergency Light | Custom Options Available | 4 Week Lead Time Photometrics

Self-Testing Option

The Guardian circuit continuously monitors the operating condition of the AC power, battery supply voltage, emergency lamp continuity and charging circuit. The purpose of this option is to provide visual signaling in response to a fault at the Emergency Unit and/or battery charger. The Guardian Self-Test/Self-Diagnostics system performs one 5 minute discharge test monthly. Every 6 months, two 90 minute discharge tests are performed. This tests both full battery capacity and recharge capability, as required by the Life Safety Code. The information is communicated simply and intuitively to maintenance personnel via a single multi-color LED.

Remote Head Capable Option

The EL-XLL Emergency Light is remote head capable. The lamps would then operate on the same emergency mode as the standard units (see Emergency Operation Section).

The number of remote heads supported is determined by the light operation type. For example, if the operation selected is 6V 36W with (2) 9W Lamps, 2 additional 9W lamps can be supported.

36W is the maximum wattage this operation type supports:

9W + 9W = 18W (Included Lamps)

36W – 18W = 18W (Wattage left to use)

36W ÷ 9W = 4 (Number of Lamps that be added)

Electrical Components

Dual 120V or 277V voltage input at 60hz also configured with a high-efficiency two-stage charger providing precise float voltage control. All components used in the circuitry are temperature compensated. Charger status is easily determined via a dual diagnostic LED display..

Installation

The EL-XLL Emergency Light offer a universal mounting patern for easy wall mount installation. Terminal connectors allow for larger gauge wires to be connected for remote loads.

Mounting Configurations   Mounting Configurations Explained

PDF Download   View Installation Instructions

Dimensions

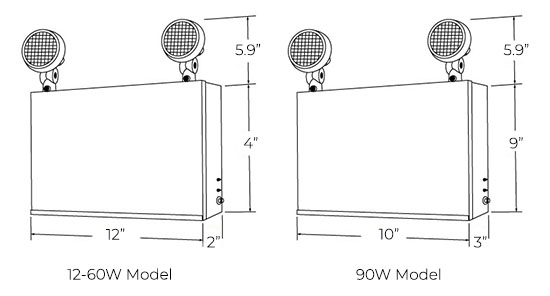

Steel Housing LED  Emergency Light | Custom Options Available | 4 Week Lead Time Dimensions
