Steel Housing Green LED Exit Sign | White Housing | Battery Backup or AC Only Operation

Base Code: EXST-G

Items marked FAST SHIP typically ship same day if order is placed before noon

Steel Housing Green LED Exit Sign | White Housing | Battery Backup or AC Only Operation
Processing...

Get Help

Lead Time: 7-10 Day

Qty
The EXST Steel Housing LED Exit Sign combines rugged durability with energy-efficient performance. Its ultra-bright Green LEDs ensure clear visibility, housed in a powder-coated 20-gauge steel frame available in white or black. Designed for versatility, it features field-selectable knockout Chevrons and allows double-face conversion. The unit supports dual 120/277V input and includes a push-to-test switch and a long-life 4.8V NiCd battery for 90-minute emergency illumination. UL listed for damp locations and compliant with UL924, NFPA 101, NEC, and CEC Title 20.

Protective Wire Guard: WGX-EX

Compatible Battery:  BAA-48R

This product has been tested to meet all required U.S. standards by Underwriters Laboratories, Inc. (UL), the most widely recognized U.S. nationally recognized testing laboratory (NRTL).

UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

LED Lighting
This product uses energy efficient and long lasting LED's.

Battery Included

Battery Included
This product contains a battery for backup power. The battery must be connected during installation.

Features

  • UL 924, NEC and NFPA 101 Life Safety Code
  • Certified to CEC Under Title 20 Regulations
  • Listed for damp location
  • Push-to-test switch (Battery Backup Only)
  • 120/277V operation
  • Rugged high impact steel with powder coat finish
  • Charge rate / power on LED indicator light
  • Long life, energy saving LED lamps
  • Universal mounting canopy for top or side installation
  • 4.8V 700mAh NiCad battery

Previous Product Codes: EXST-GW

Specifications

Dimensions (May Vary by Model)
Width12.50"
Height8.75"
Depth2"
Weight6.00 lb

What's included?

  • GREEN LED Exit Sign
  • Two "EXIT" Faceplate (with optional knockout arrows)
  • One Blank Faceplate
  • Mounting Canopy, Installation Instructions & Hardware
  • NiCad Battery - Must connect the battery after installation

Construction

Constructed from durable, powder-coated 20-gauge steel, the EXST Exit Sign is available in a white or black finish to suit various applications. Its unique design allows for easy double-face conversion in the field, while field-selectable steel knockout Chevron directional indicators provide flexible installation options.

Illumination

Illumination is achieved by use long-lasting, high intensity Green LEDs. Color-matched diffuser eliminates hots spots and striations, providing optimal light output.

Emergency Operation

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

Battery - Battery Backup

The EXST Steel Exit Sign is designed with a maintenance-free 4.8V NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.

Operational Temperature

Temperature Ratings
Standard Option 32°F to 122°F

Electrical Components

The EXST Exit Sign operates on dual 120/277V input and includes a charge rate/power “ON” LED indicator light with a push-to-test switch for code compliance testing. An internal solid-state transfer switch automatically connects the battery to the LED board to provide a minimum of 90 minutes of emergency illumination. A fully automatic, solid-state two-rate charger efficiently recharges a discharged battery within 24 hours.

Installation

The EXST Exit Sign includes a mounting canopy for top or end mounting and features a universal knockout pattern on the back plate for easy wall mounting, offering flexible installation options to suit various applications.

Mounting Configurations   Mounting Configurations Explained

PDF Download   View Installation Instructions

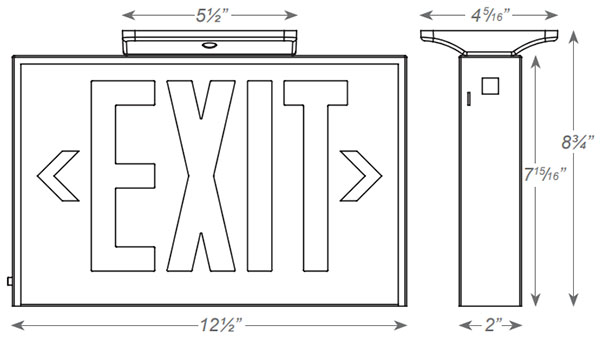

Dimensions

Steel Housing Green LED Exit Sign | White Housing | Battery Backup or AC Only Operation Dimensions
