Steel Red LED Exit Sign - White Housing

Base Code: EXST-R

Items marked FAST SHIP typically ship same day if order is placed before noon

Steel Red LED Exit Sign - White Housing
Processing...

Get Help

Lead Time: AC only: 7-10 Days

Qty
Steel exit sign with backup battery, works on either 120 or 277 VAC. Faceplate includes knock-out left/right arrows. Allows top, lateral or flush mount installation. This exit sign is pre-assembled and shipped single sided with an additional EXIT faceplate included in the box for optional manual assembly.

Compatible Battery:  BAA-48R

This product has been tested to meet all required U.S. standards by Underwriters Laboratories, Inc. (UL), the most widely recognized U.S. nationally recognized testing laboratory (NRTL).

UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

LED Lighting
This product uses energy efficient and long lasting LED's.

Battery Included

Battery Included
This product contains a battery for backup power. The battery must be connected during installation.

Features

  • UL 924, NEC and NFPA 101 Life Safety Code
  • Listed for damp location
  • Push-to-test switch (Battery Backup Only)
  • 120 or 277V operation
  • Rugged high impact steel with powder coat finish
  • Charge rate / power on LED indicator light
  • Long life, energy saving LED lamps
  • Universal mounting canopy for top or side installation
  • 4.8V 700mAh NiCad battery
  • NON CEC Compliant

Previous Product Codes: EXST-RW

Specifications

Dimensions (May Vary by Model)
Width12.75"
Height9"
Depth2"
Weight6.00 lb

What's included?

  • RED LED Exit Sign
  • Two "EXIT" Faceplate (with optional knockout arrows)
  • One Blank Faceplate
  • Mounting Canopy, Installation Instructions & Hardware
  • NiCad Battery - Must connect the battery after installation

Construction

The EXST-R Exit Sign is constructed with a Rugged Steel Housing and Powder Coat Finish (High Impact)

Illumination

Illumination is achieved by use long-lasting, high intensity red or green LEDs. Color-matched diffuser eliminates hots spots and striations, providing optimal light output.

Emergency Operation

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

Battery - Battery Backup

The EXST-R Steel Exit Sign is designed with a maintenance-free NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours. Operational temperature range is 20°F (-7°C) to 95°F (35°C).

Electrical Components

Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch with battery backup units allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.

Installation

The EXST-R LED Exit Sign is suitable for surface wall, side and top mounting via included canopy. Snap together design allows for quick and easy installation. Knock-out chevrons for customized egress signage.

Mounting Configurations   Mounting Configurations Explained

PDF Download   View Installation Instructions

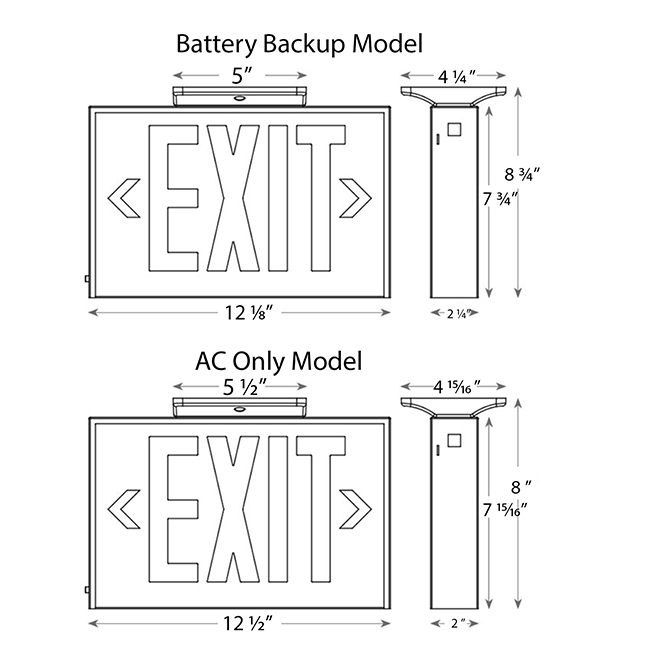

Dimensions

Steel Red LED Exit Sign - White Housing Dimensions

Customer Questions & Answers
Post a question and have an expert answer



Q Ted Babilius • 09/19/2019, 10:13:18 AM Is the ELCEXST-R sign double sided?
A Exit Light Co. Yes, this unit comes with an extra face plate.
Q Andy Kiely • 06/07/2024, 1:25:12 PM Can you get just the red insert that goes along with the exit signs that insert into the unit?
A Exit Light Co. The plastic inserts are not sold separately.
