Standard Green LED Exit Sign | White or Black Housing
Base Code: LED-G
Items marked FAST SHIP typically ship same day if order is placed before noon
$18.75
A simple, efficient and secure UL Listed exit sign with 6" Green LED letters. This unit requires a 120 or 277 VAC operation.
A left and right arrow can be knocked out from the faceplate to point to the exit direction. A universal mounting bracket allows for easy mounting from the top or sides. This exit sign is pre-assembled and shipped single sided with an additional EXIT faceplate included in the box for optional manual assembly.
The LED series is UL listed and meets or exceeds the following: UL 924, NEC and NFPA 101 Life Safety Code requirements. Also available with UL Canada listing option.
Input Wattage: Battery Backup - 1.8W
Compatible Battery:
Battery Backup: BAA-12
Self-Testing: BAA-48R
UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
LED Lighting
This product uses energy efficient and long lasting LED's.
Battery Included
This product contains a battery for backup power. The battery must be connected during installation.
Features
- UL 924, NEC and NFPA 101 Life Safety Code
- Listed for damp location
- 120 or 277 VAC operation
- Injection-molded, VO flame retardant, high impact housing
- Universal mounting canopy for top or side installation
Previous Product Codes: LEDG, LEDGBB, LEDGAC, LEDGBB-ST
Specifications
| Dimensions (May Vary by Model) | |
| Width | 11.5" - 12.25" |
| Height | 7.5" |
| Depth | 1.75" |
| Weight | 5.00 lb |
What's included?
- GREEN LED Exit Sign
- Two "EXIT" Faceplates (with optional knockout arrows)
- One Blank Faceplate
- Mounting Canopy, Installation Instructions & Hardware (Inside Unit)
- NiCad Battery - Must connect the battery after installation
Construction
The LED Emergency Exit Sign is constructed from injection molded, V-0 flame retardant, high impact thermoplastic housing. White housing is standard.
Illumination
The LED Exit Sign series illumination is achieved by use long-lasting, efficient ultra bright red or green LEDs. Color-matched diffuser eliminates hots spots and striations, providing optimal light output.
Emergency Operation
Upon failure of the normal utility power, an internal solid-state
transfer switch automatically provides uninterrupted emergency operation for at
least 90 minutes. The fully automatic solid-state, two-rate charger initiates
battery charging to recharge a discharged battery in 24 hours.
Battery - Battery Backup
The LED Standard Exit Sign is designed with a maintenance-free 1.2V 1000mAh NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.
Operational Temperature
| Temperature Ratings | |
| Standard Option | 20°C to 30°C / 68°F to 86°F |
Self-Testing Option
Unit continuously monitors the AC power, battery supply voltage, emergency lamp condition and charging circuit. If failure is detected, the indicator will show status and correct when adjusted. Unit will automatically perform NFPA required monthly and annual testing. Refer to user manual for details.
Electrical Components
Dual voltage input 120/277 VAC operation. LED display
indicates AC/ON. An external push button test switch with battery backup units
allows maintenance personnel to quickly determine the operational status of the
unit. Unit offers surge protected, solid state circuitry.
Installation
The LED Exit Sign is suitable for surface wall, side and top mounting via included canopy. Snap together design allows for quick and easy installation. Knock-out chevrons for customized egress signage.
Mounting Configurations Explained
View Installation Instructions

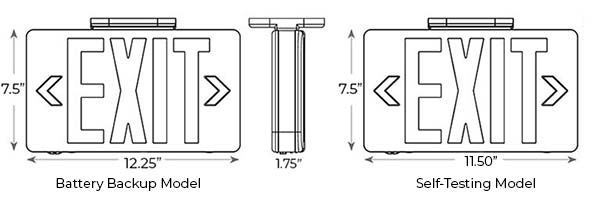

Dimensions
View Common Questions or Ask Your Own Below
Post a question and have an expert answer
Q
Nerijus • 03/28/2019, 11:51:34 AM
Hey,
In the video it was shown that sign can be attached trough the side or throughthe top. Is it possible to attach it from the back?
A
Exit Light Co.
Yes! The back panel of this unit has knockouts to allow flush mounting against the wall.
