NYC 8" Cast Aluminum Exit Sign | Red LED Letters
Base Code: NYCCA-R
![NYC 8" Cast Aluminum Exit Sign | Red LED Letters](graphics/en-US/cssui/blank.gif)
![Processing... Processing...](themes/levels/images/img_ajax_processing.gif)
An efficient and secure exit sign with cast aluminum housing that is architecturally pleasing. Works on either 120 or 227 VAC. Faceplate includes knock-out left/right arrows. Allows both top or lateral installation.
Compatible Battery: BAA-48R
![This product has been tested to meet all required U.S. standards by Underwriters Laboratories, Inc. (UL), the most widely recognized U.S. nationally recognized testing laboratory (NRTL).](https://d11a0uwhosx1i3.cloudfront.net/mm5/graphics/00000001/web/ul_logo.jpg)
UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
![LED Lighting](https://d11a0uwhosx1i3.cloudfront.net/mm5/graphics/00000001/web/led_logo.gif)
LED Lighting
This product uses energy efficient and long lasting LED's.
![New York City Approved](https://d11a0uwhosx1i3.cloudfront.net/mm5/graphics/00000001/web/logo_nyc.gif)
New York City Approved
This product is approved for New York City.
Features
- UL 924, NEC, OSHA and NFPA 101 Life Safety Code
- New York City Approved
- 8" Letters
- Damp Location Rated
- Universal 120/277 VAC operation
- Universal canopy included
- Spec grade cast aluminum
- Universal knock-out chevrons
- Push-to-test switch
Previous Product Codes: NYCA-ABR
Specifications
Dimensions (May Vary by Model) | |
Width | 15.5" |
Height | 11.25" |
Depth | 2.06" |
Weight | 6.00 lb |
What's included?
- RED LED Exit Sign
- One "EXIT" Faceplate (with optional knockout arrows)
- One Blank Faceplate
- Matching Second "EXIT" Faceplate (extra cost)
- Mounting Canopy, Installation Instructions & Hardware
- NiCad Battery - Must connect the battery after installation
Construction
The NYCCA-R series is contructed from premium-grade, aluminum housing. Field selectable knockout chevron (Arrows) directional indicators. Aluminum face with black housing is standard. 8" EXIT verbiage for NYC Code.
Illumination
The NYCCA-R Exit Sign series illumination is achieved by use long-lasting, efficient ultra bright red LEDs. Color-matched diffuser eliminates hot spots and striations, providing optimal light output.
Emergency Operation
Upon failure of the normal utility power, an internal solid-state transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Battery - Battery Backup
The NYCCA-R series is designed with a maintenance-free 4.8V NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.
Operational Temperature
Temperature Ratings | |
Standard Option | 0°C to 50°C / 32°F to 122°F |
Electrical Components
Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch with battery backup units allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid-state circuitry.
Installation
The NYCCA-R is suitable for surface wall, side and top mounting via included canopy. Snap together design allows for quick and easy installation. Knock-out chevrons for customized egress signage.
Mounting Configurations Explained
View Installation Instructions

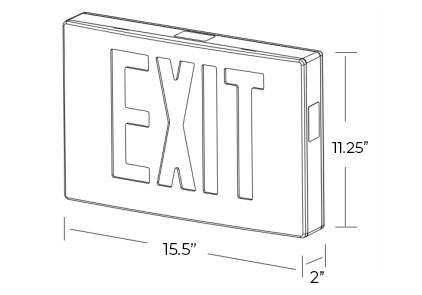

Dimensions
![NYC 8](https://d11a0uwhosx1i3.cloudfront.net/mm5/graphics/00000001/web/NYCA-ABR_Dimensions.jpg)
