New York City Approved Wet Location Exterior Exit Sign | Red LED | NEMA 4X Rated

Base Code: NYCWLT-4X

Items marked FAST SHIP typically ship same day if order is placed before noon

New York City Approved Wet Location Exterior Exit Sign | Red LED | NEMA 4X Rated
Processing...
$275.00

Get Help

Lead Time:
1-2 Week

Qty

NEW! The NYCWLT-4X series has arrived at ELC. This exit sign is engineered to withstand the extreme weather conditions of New York City. The NYCWLT-4X exit sign meets or exceeds NEMA 4X and meets the building codes of NYC. Suitable for all types of installation types: parking garages, breezeways and other environments where additional protection is needed. No more worrying about dead batteries, corroded internals, etc. due to weather, this exit sign is designed with a fully gasketed enclosure.

This product has been tested to meet all required U.S. standards by Underwriters Laboratories, Inc. (UL), the most widely recognized U.S. nationally recognized testing laboratory (NRTL).

UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

LED Lighting
This product uses energy efficient and long lasting LED's.

Battery Included

Battery Included
This product contains a battery for backup power. The battery must be connected during installation.

Features

  • UL 924, NEC, NYC, NEMA 4X and NFPA 101 Life Safety Code
  • Listed for wet location
  • Ultra bright LEDs
  • Suitable for top, side, and wall mount installations
  • Push-to-test switch
  • 120/277 VAC operation @ 60Hz
  • Extremely low operating costs
  • Removable directional indicators
  • UV stabilized polycarbonate enclosure
  • Maintenance free NiCad battery

Specifications

Dimensions (May Vary by Model)
Width2.13"
Height10.5"
Length14.5"
Weight10.00 lb

What's included?

  • RED LED Exit Sign
  • One "EXIT" Faceplate (with optional knockout arrows)
  • One Blank Faceplate
  • Mounting Canopy, Installation Instructions & Hardware
  • 3M Gasket
  • 4 Mounting Bracket Tabs
  • NiCad Battery - Must connect the battery after installation

Construction

The NYCWLT-4X exit sign enclosure is made of UV-stable, reinforced .23" thick polycarbonate and is fully gasketed to provide protection for internal components. The housing also provides protection against corrosion and the formation of ice.

Illumination

Illumination of the NYC-WLT Series is accomplished by utilizing high-intensity, long-life LEDs exceeding UL 924 requirements for brightness and uniformity. LEDs provide excellent illumination while maximizing energy efficiency. LEDs are a maintenance-free solution, providing up to 100,000 hours of use.

Emergency Operation

Upon failure of the normal utility power, an internal solid-state transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

Battery - Battery Backup

The NYCWLT-4X series is designed with a maintenance-free NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours. The battery is protected by a low voltage cut-off circuit.

Operational Temperature

Temperature Ratings
Series Temperature
Standard Option32 °F to 104 °F

Electrical Components

Dual voltage input 120/277 VAC operation at 60Hz. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit.

Installation

The NYCWLT-4X series exit sign is designed with a universal mounting pattern for 3” and 4” J-box (gasket included) and rear keyhole slots are provided for wall mounting. Conduit entry available at multiple locations from top or sides; when using conduit the included 4 mounting brackets must be used. Pendant mount also available.

Mounting Configurations   Mounting Configurations Explained

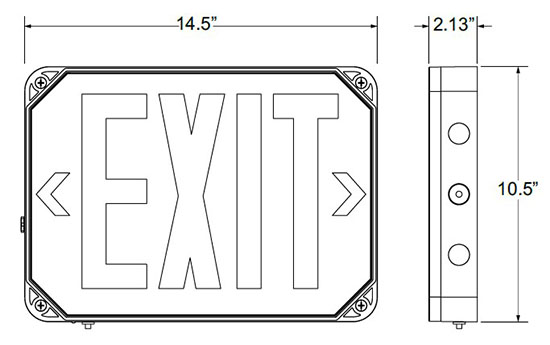

Dimensions

New York City Approved Wet Location Exterior Exit Sign | Red LED | NEMA 4X Rated Dimensions

Customer Questions & Answers
Post a question and have an expert answer



Q Naoki Fukui • 09/22/2023, 9:57:36 AM Do you have a double sided version of this exit light?
A Exit Light Co. We currently only carry the single-sided version.
