New York City Approved Wet Location Exterior Combo Exit Sign | Red LED | White and Black Housing
Base Code: NYCWLTCOMBO-R
Items marked FAST SHIP typically ship same day if order is placed before noon
$110.00
NEW! The NYCWLTOMBO-R series has finally arrived at ELC. A combo exit sign that is engineered to withstand the weather conditions of New York City. The NYCWLTCOMBO-R exit sign meets or exceeds the building codes of NYC. Suitable for all types of installation types: parking garages, breezeways and other environments where additional protection is needed. No more worrying about dead batteries, internals, etc. due to weather, this exit sign is designed with a fully gasketed enclosure.
UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
LED Lighting
This product uses energy efficient and long lasting LED's.
Battery Included
This product contains a battery for backup power. The battery must be connected during installation.
Features
- UL 924, NEC, NYC, and NFPA 101 Life Safety Code
- Listed for wet location
- Ultra bright LEDs
- Suitable for wall mount installations only
- Push-to-test switch
- 120 to 277 VAC operation @ 50/60Hz
- Extremely low operating costs
- Removable directional indicators
- UV stabilized polycarbonate enclosure
- Maintenance free NiCad battery
Specifications
| Dimensions (May Vary by Model) | |
| Width | 2" |
| Height | 15.21" |
| Length | 14.34" |
| Weight | 10.00 lb |
What's included?
- RED LED Exit Sign
- One "EXIT" Faceplate (with optional knockout arrows)
- One Blank Faceplate
- Installation Instructions & Hardware
- NiCad Battery - Must connect the battery after installation
Construction
The NYCWLTCOMBO-R exit sign enclosure is made of UV-stable polycarbonate material and is fully gasketed to provide protection for internal components. Features a steel stencil with matte white powder coat finish. 8" letters with a 1" stroke. White and black housing options available.
Illumination
Illumination of the NYCWLTCOMBO-R Series is accomplished by utilizing high-intensity, long-life LEDs exceeding UL 924 requirements for brightness and uniformity. LEDs provide excellent illumination while maximizing energy efficiency. Designed with 3 bright adjustable LED lamps.
Emergency Operation
Upon failure of the normal utility power, an internal solid-state transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Battery - Battery Backup
The NYCWLTCOMBO-R series is designed with a maintenance-free NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours. The battery is protected by a low voltage cut-off circuit.
Operational Temperature
| Temperature Ratings | |
| Series | Temperature |
| Standard Option | 50°F to 104°F |
Photometrics
Total Luminaire Lumens : 330lm
Suggested mounting height of 7.5ft illuminates 2 footcandle (FC) spaced at 27ft for a 3ft path of egress.Mounting height of 10ft illuminates 2 footcandle (FC) spaced at 24ft for a 3ft path of egress.
Disclosure:
Spacing is measured in lab condition with an assumed open space, no obstruction and reflection rates of 80 (ceiling) / 50 (walls) / 20 (floor). Actual spacing may vary depending on what environment the fixture is installed in.
Electrical Components
Universal voltage input 120-277 VAC operation at 50/60Hz. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit.
Installation
The NYCWLTCOMBO-R series combo exit sign is designed with a universal mounting pattern for 3” and 4” J-box (gasket included) and rear keyhole slots are provided for wall mount installations.
Mounting Configurations Explained

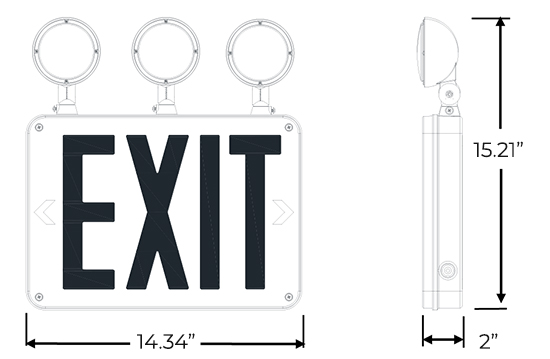

Dimensions
