Thermoplastic Photoluminescent Exit Signs | 50' and 75' Viewing Distance
Base Code: PA3
Items marked FAST SHIP typically ship same day if order is placed before noon
$75.00
Leading the industry in zero-energy egress systems, these exit signs utilize the latest photoluminescent technology to absorb and store ambient light. In the event of an emergency with blackout or smoky conditions this stored energy is immediately visible, creating a clearly recognizable, photoluminescent egress indicator. These innovative emergency egress signs reduce the risk of panic or injury during an evacuation, offering peace of mind while eliminating energy costs.
UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
Photoluminescent
This product uses long lasting, electricity free Photoluminescent Lighting (Glow in the Dark) Technology.
No Electricity
This unit doesn't require electricity or a battery.
Features
- UL 924 and NFPA 101 Life Safety Code
- Suitable for wet location and/or damp location areas
- Zero energy consumption
- Zero maintenance - no bulbs or battery replacement
- Non-toxic, non-radioactive
- Mounting Options: Wall, Ceiling, and Side
- Consistent, uniform illumination, 50' and 75' visibility
- Life Expectancy 20 years
- Operating Temperature 50°F to 104°F
- Explosion proof
- Indoor/Outdoor installation
- No future hazmat disposal needed
Previous Product Codes: PAJP
Specifications
| Dimensions (May Vary by Model) | |
| Width | 16" |
| Height | 9.25" |
| Depth | 0.75" |
| Weight | 8.00 lb |
What's included?
- Photoluminescent Exit Sign (Red, Green, or Black)
- Mounting Canopy
- Installation Instructions and Manual
Construction
The PA3 Series Exit Sign has a thin, low profile construction with ABS thermoplastic paneling and photoluminescent lettering. This wire-free exit sign is high durability, non-toxic, non-radioactive and has a life expectancy of 20 years.
Illumination
Provides consistent, uniform illumination at a 50 or 75 foot viewing distance.
Emergency Operation
Upon failure of the normal utility power the PA3 exit sign will provide at least 90 minutes of illumination. *The sign must be charged for a minimum of 90 minutes to become fully operational.
Battery - Battery Backup
The PA3 Series Exit Sign has a thin, does not require any type of battery connection.
Electrical Components
The PA3 Series Exit Sign does not require any type of electrical components.
Installation
The PA3 Series Exit Sign series is suitable for wall mount, ceiling mount, and side mount. Typical ambient lighting is usually sufficient to charge the exit sign. Ambient light levels at sign location should be measured with a light meter to confirm that 5 foot-candles (54 lux) is present on exit sign face(s). There must be a minimum of 5 foot-candle (54 lux) on exit sign face(s) of LED, fluorescent, metal halide or mercury vapor light. This sign is suitable for both indoor and outdoor installations. However, prolonged exposure to direct sunlight in outdoor settings may lead to some discoloration, particularly in signs with plastic components. The photoluminescence of the lettering itself is not expected to be significantly affected by sunlight exposure.
Mounting Configurations Explained

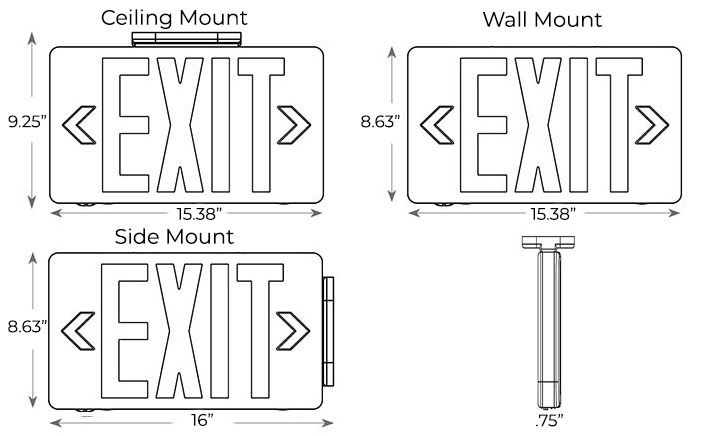

Dimensions
Customer Questions & Answers
Post a question and have an expert answer
Q
Tom • 02/04/2023, 7:31:48 PM
Is this sign approved for businesses
A
Exit Light Co.
Codes vary by region. Your local fire marshal will be able to tell you what is needed for your building.
Q
Gerald York • 04/10/2023, 9:21:01 AM
Is there a warranty on these exit lights?
A
Exit Light Co.
All of our products are covered by a one-year limited warranty. You can view it here: https://www.exitlightco.com/Warranty.html
Q
Steven • 10/16/2023, 3:29:35 AM
We are interested on PA3 - Thermoplastic Photoluminescent Exit Signs. While we are checking on the specification, we notice it stated *The sign must be charged for a minimum of 90 minutes to become fully operational. Please advise how we charge the sign ?
A
Exit Light Co.
Typical ambient lighting is usually sufficient to charge the exit sign. Ambient light levels at sign location should be measured with a light meter to confirm that 5 foot-candles (54 lux) is present on exit sign face(s).
