Green Exterior Combo Exit Sign | Square LED Lamps
Base Code: WLFCOMBO-G
Items marked FAST SHIP typically ship same day if order is placed before noon
$80.00
A perfect combo exit sign for exterior or wet locations. This ultrabright, compact unit provides the affordability you've been looking for in a high-end package. Adjustable lamp heads can be pointed downward to light the path to safety. Long-life LEDs and NiMh battery make this unit energy efficient and maintenance-free! Provides 90 minutes of emergency power. Includes two “exit” faceplates and a blank faceplate. The faceplates have two knock-out chevrons for easy customization. Perfect for wall or end mounting. The exit sign and emergency light combination is capable of operating in temperatures 32°F to 104 °F. For a wet location combo with an expanded temperature option please see the WLTCOMBO.
Compatible Battery: 3.6V 1200mAh Ni-Mh
UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
LED Lighting
This product uses energy efficient and long lasting LED's.
Battery Included
This product contains a battery for backup power. The battery must be connected during installation.
Features
- UL 924, NEC, OSHA, NFPA 101 Life Safety Code, and Listed for Wet Locations
- Square LED Lamps
- Maintenance free 3.6V 1200mAh Ni-Mh Battery (Included)
- Fixture can be single or double sided
- Ultra bright LEDs
- Push-to-test switch
- 120/277 VAC dual operation
- Removable directional indicators
- Injection Molded thermoplastic ABS housing, UL 94V-0 flame rating
Specifications
| Dimensions (May Vary by Model) | |
| Height | 13.3" |
| Depth | 2.25" |
| Length | 12.5" |
| Weight | 10.00 lb |
What's included?
- GREEN LED Outdoor Combo Exit Sign / Emergency Light
- Two "EXIT" Faceplate (with optional knockout arrows)
- One Blank Faceplate
- Mounting Canopy, Installation Instructions & Hardware (Inside Unit)
- Ni-Mh Battery - Must connect the battery after installation
Construction
The WLFCOMBO series is constructed of injection-molded thermoplastic ABS housing. UL 94V-0 Flamre Rated. Fully gasketed with engineering grade silicone.
Illumination
The WLFCOMBO series uses ultra bright, energy efficient red or green LEDs. Features 2 fully adjustable square LED lamp heads. Total lumen output is 228.6 lm.
Emergency Operation
Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Battery - Battery Backup
The WLFCOMBO Weatherproof Combo Exit Sign series is designed with a maintenance-free Ni-Mh battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.
Operational Temperature
| Temperature Ratings | |
| Series | Temperature |
| Battery Backup | 0°C to 40°C / 32°F to 104°F |
Electrical Components
Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit.
Installation
The WLFCOMBO combination unit is suitable for surface wall and end mounting. Suitable for indoor and wet location installations.
Mounting Configurations Explained

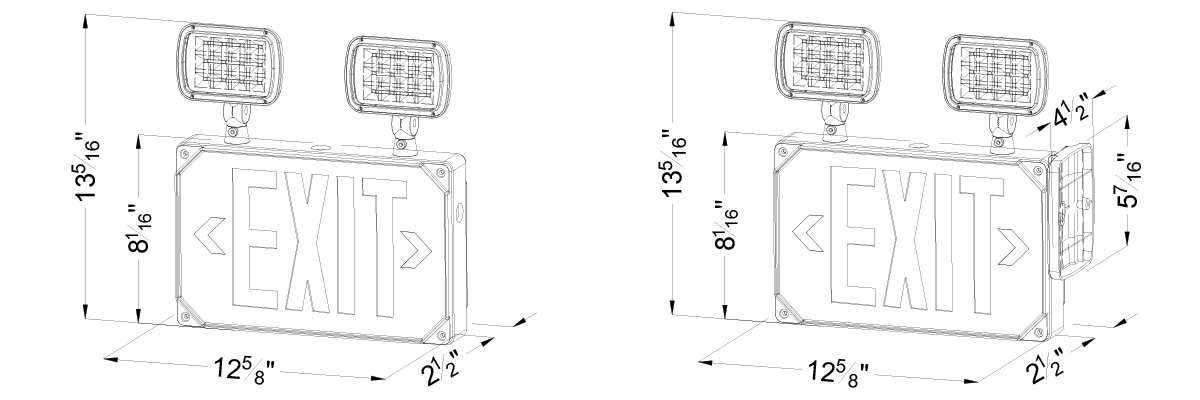

Dimensions
View Common Questions or Ask Your Own Below
Post a question and have an expert answer
Q
Ed • 01/30/2024, 7:23:04 PM
Hi. I have two questions, but there may not be an answer to the second one though. First: how much power draw on a 120V circuit? In the context of how many can be placed on one circuit. Is it 36 milliampres/1.5 hours? Second: Is there a model that operates at lower temperatures, as sometimes the temperature drops below 32 F? Thanks
A
Exit Light Co.
Hello,
Power Drawn at 120V: 0.025A
We also would suggest our WLCOHD it can operate in -4F weather.
https://www.exitlightco.com/product/WLCOHD.html
