LED Weatherproof Emergency Light

Base Code: EL-LWET

Items marked FAST SHIP typically ship same day if order is placed before noon

LED Weatherproof Emergency Light
Processing...

Lead Time: FAST SHIP

Qty
An efficient and secure wet listed Emergency Light. Corrosion resistant enclosure, Sealed, AC ready light, featuring 15 LED lamp heads. Works on either 120 or 277 VAC.  Light grey housing is standard.

Compatible Remote Head(s): RHB-L-MV, RHB-WPL-MV
To use with with remote heads, please change the Operation Type above to Battery Backup + Remote Head Capable to ensure compatibility. Code at time of checkout must read: EL-LWET-W-RH.

This product has been tested to meet all required U.S. standards by Underwriters Laboratories, Inc. (UL), the most widely recognized U.S. nationally recognized testing laboratory (NRTL).

UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

LED Lighting
This product uses energy efficient and long lasting LED's.

Battery Included

Battery Included
This product contains a battery for backup power. The battery must be connected during installation.

Features

  • UL 924, CSA Listed, and Wet Location Listed
  • Fully sealed and gasketed housing
  • Includes two 15 LED lamp heads
  • Maintenance-free sealed battery
  • Sealed momentary push-to-test switch & AC indicator light

Specifications

Dimensions (May Vary by Model)
Height12.25"
Depth3"
Length8.6"
Weight10.00 lb

What's included?

  • Wet Listed Emergency Light
  • Installation Instructions & Hardware
  • NiCad Battery - Must connect the battery after installation (Located inside unit)

Construction

The EL-LWET Emergency Light is contructed from corrosion resistant and impact resistant thermoplastic housing. Resistant to corrosive atmosphere, harsh environments and non-hazardous dust environments. UL listed for wet location and designed to withstand hose-downs, water spray and splashing water.

Illumination

EL-LWET emergency unit uses two top mounted heads lamps (15 LEDs in each lamp). Heads are constructed from high impact thermoplastic. Fully-adjustable.

Emergency Operation

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

Battery - Battery Backup

The EL-LWET Emergency Light is designed with a maintenance-free 9.6V NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.

Operational Temperature

Temperature Ratings
Series Temperature
Standard Option 10°C to 40°C / 50°F to 104°F

Photometrics

Total Luminaire Lumens : 240lm
Input Wattage: 1.21
Input Voltage: 9.6V
Amps: .126

Download .IES File

Standard mounting height of 8ft illuminates 1 footcandle (FC) spaced at 34ft for a 3ft path of egress.

Mounting height of 12ft illuminates 1 footcandle (FC) spaced at 27ft for a 3ft path of egress.

Disclosure:

Spacing is measured in lab condition with an assumed open space, no obstruction and reflection rates of 80 (ceiling) / 50 (walls) / 20 (floor). Actual spacing may vary depending on what environment the fixture is installed in.

LED Weatherproof Emergency Light Photometrics

Remote Head Capable Option

The remote head capability option allows the EL-LWET unit to supply power to up to two additional 9.6V remote heads. The remote heads would then operate on the same emergency mode as the standard units (see Emergency Operation Section).

Electrical Components

Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit.

Installation

The EL-LWET is suitable for surface wall mounting. Optional hardware is included. Hinged front access panel allows for trouble free installation and maintenance.

Mounting Configurations   Mounting Configurations Explained

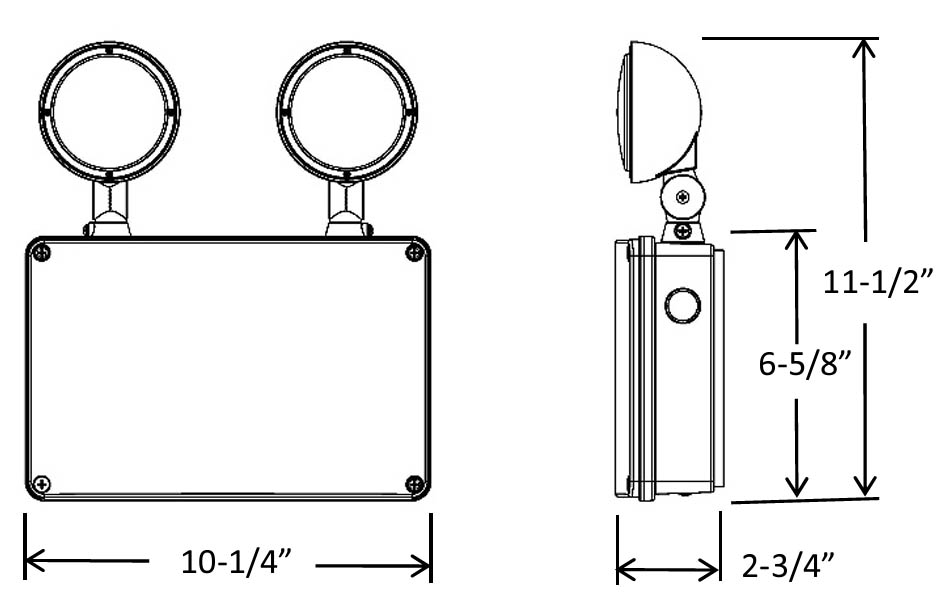

Dimensions

LED Weatherproof Emergency Light Dimensions

Customer Questions & Answers
Post a question and have an expert answer



Q mark • 07/20/2020, 4:13:52 PM Does this come in bronze or black? Thanks Mark
A Exit Light Co. This unit only comes in the standard white color.
Q Les Deal • 01/22/2023, 2:24:59 AM When operating remote heads, what is the maximum distance to the furthest head, assuming the wiring from the main unit to the heads is 12awg?
A Exit Light Co. You are able to run it as long as you need it , as long as the voltage does not drop less than 5V.
Q Richard Ohrtman • 03/30/2023, 10:11:23 AM Do you sell just the led element itself?
A Exit Light Co. We do not sell LEDs themselves. We do sell retrofit kits if you are converting an incandescent sign to LED: https://www.exitlightco.com/search?categories%5B%5D=&Search=retrofit
