Oval LED Emergency Light | Compact Size | 200lm Output | Battery Backup

Base Code: EL-M

Items marked FAST SHIP typically ship same day if order is placed before noon

Oval LED Emergency Light | Compact Size | 200lm Output | Battery Backup
Processing...

Qty
Fully adjustable emergency light with energy-saving LED lamps in an economical package. Long lasting, low maintenance NiCad battery. No heavy, short-lived sealed lead acid batteries! Works on either 120 or 277 VAC.

Compatible Battery:  3.6V 1000mAh

This product has been tested to meet all required U.S. standards by Underwriters Laboratories, Inc. (UL), the most widely recognized U.S. nationally recognized testing laboratory (NRTL).

UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

LED Lighting
This product uses energy efficient and long lasting LED's.

Battery Included

Battery Included
This product contains a battery for backup power. The battery must be connected during installation.

Features

  • UL and cUL listed and meets or exceeds all requirements in NFPA 101 life Safety Code
  • Suitable for USA and Canada Market
  • All LED light! No SLA batteries, uses long lasting NiCads that are very low maintenance
  • 3.6V 1000mAh Battery
  • Two fully adjustable, glare-free LED lighting heads
  • Injection-molded, high impact, UV-stabilized, UL 94 V-O thermoplastic housing
  • Lightweight with snap-together construction for easy installation
  • Universal mounting plate with quick-connect feature
  • Universal J-box mounting pattern

Previous Product Codes: EL-MW

Specifications

Dimensions (May Vary by Model)
Height3.9"
Depth1.77"
Length8.5"
Weight1.00 lb

What's included?

  • White All LED Emergency Light
  • Installation Instructions & Hardware
  • NiCad Battery - Must connect the battery after installation (Located inside unit)

Construction

The EL-M Series is constructed from injection molded, Impact-and scratch-resistant and corrosion-proof UL 94 V-0 flame retardant thermoplastic housing. White housing is standard.

Illumination

The EL-M series model is equipped with 1W ultra bright LEDs on each lamp provding a maximum lumen output of 200lm.

Emergency Operation

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

Battery - Battery Backup

The EL-M Emergency Lighting series is designed with maintenance-free 3.6V 1000mAh NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.

Operational Temperature

Temperature Ratings
Series Temperature
Standard Option32 °F to 104 °F

Electrical Components

Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch with battery backup units allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.

Installation

The EL-M is suitable for wall or ceiling installation via included mounting plate. Snap together design allows for quick and easy installation.

Mounting Configurations   Mounting Configurations Explained

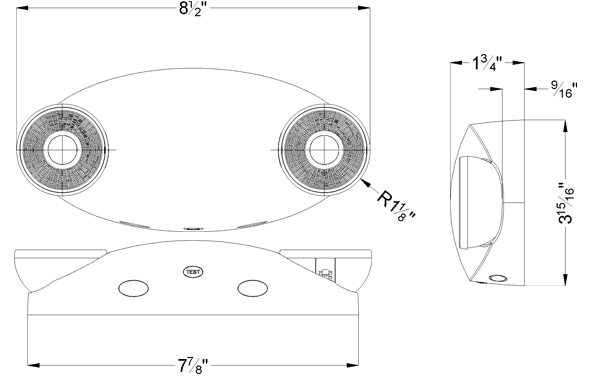

Dimensions

Oval LED Emergency Light | Compact Size | 200lm Output | Battery Backup Dimensions

Customer Questions & Answers
Post a question and have an expert answer



Q Eugene jones • 03/23/2023, 12:10:57 PM Does this unit have to be hardwired to the electrical circuit
A Exit Light Co. Yes, the EL-M unit needs to be hardwired to the building's electrical system.
Q Tyler Anderson • 08/04/2023, 6:39:45 AM What is the storage temperature range?
A Exit Light Co. The storage temperature is 50°F (10°C) to 104°F (40°C).
Q George Mitchell • 01/30/2024, 7:43:14 PM Can the EL-M be mounted to a square junction box?
A Exit Light Co. Hello, Yes, You are able to mount the EL-M on square box junction.
