LED Running Man Sign | Europe Approved | 180 Minute Run Time | 220-240V 50/60Hz
Base Code: ELSM-EU
Items marked FAST SHIP typically ship same day if order is placed before noon
$39.00
Introducing the new ELSM-EU emergency sign, featuring a sleek white housing, European approval, a 180 Minute runtime, interchangeable running man pictograms, and versatile mounting options for both ceiling and wall applications.
UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
LED Lighting
This product uses energy efficient and long lasting LED's.
Battery Included
This product contains a battery for backup power. The battery must be connected during installation.
Features
- 3-Hour Runtime
- IP40 Rated
- 220-240V 50/60Hz
- Listed for damp locations
- LiFePO4 Battery
- Thermoplastic Housing
- Field installable pictograms
- AC On indicator light and push-to-test button
Specifications
| Dimensions (May Vary by Model) | |
| Height | 7.48" |
| Depth | 1.57" |
| Length | 10.70" |
| Weight | 10.00 lb |
What's included?
- Running Man LED Sign
- Interchangeable Pictograms
- Mounting Canopy, Installation Instructions & Hardware
- LiFePO4 Battery - Must connect the battery after installation
Construction
The ELSM-EU Running Man Sign series signage panels are constructed and molded from high-grade acrylic. Mylar divider standard on double sided units. Standard housing finish is white.
Illumination
The ELSM-EU Running Man Sign features SMD 2835 type LEDs with a color temperature of 5700k (cool white). CRI measures greater than 70.
Emergency Operation
Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 3 hours. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Battery - Battery Backup
The ELSM-EU Running Man Sign is designed with a maintenance-free LiFePO4 batterythat provides a minimum emergency duration of 180 Minutes. Recharge time of the battery is 24 hours.
Operational Temperature
| Temperature Ratings | |
| Standard Option | 32°F to 113°F |
Electrical Components
Universal voltage input 220-240V 50/60Hz operation. LED display indicates AC/ON. An external push button test button on battery backup units allows maintenance personnel to quickly determine the operational status of the unit.
Installation
The ELSM-EU Running Man Sign series is designed for versatile wall or ceiling mounting. It comes with included pictograms for easy field installation, along with all necessary hardware.
Mounting Configurations Explained
View Installation Instructions

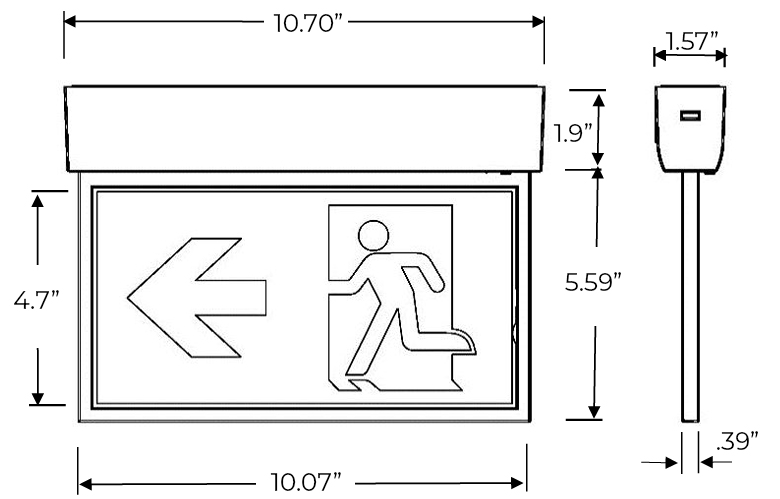

Dimensions
