Swinging Red LED Exit Sign | Vandal Resistant | Remote Capable & Self Test Options | Hinged Design
Base Code: LEDSW-R
Items marked FAST SHIP typically ship same day if order is placed before noon
$56.00
All NEW!!! LEDSW Swinging Red LED Exit Sign is a groundbreaking safety solution designed for durability, versatility, and modern functionality. Featuring a hinged design that freely swings to absorb impact, this vandal-resistant exit sign is ideal for high-traffic or challenging environments. Its bright red LED illumination ensures maximum visibility during emergencies, while optional remote capability and self-test features simplify maintenance and enhance reliability. With its adaptable design, the LEDSW can be easily installed in side mount, ceiling mount, wall mount, or slope mount configurations, making it the ultimate choice for a wide range of applications.
Compatible Battery: 3.6V 400mAh LiFePO4
Compatible Remote Head(s): RHB-L-MV, RHB-WPL-MV
To use with remote heads, please change the Operation Type above to Remote Head Capable or Remote Head Capable + Self-Testing to ensure compatibility. Code at time of checkout must read: LEDSW-R-W/B-RH/RHST.
UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
LED Lighting
This product uses energy efficient and long lasting LED's.
Battery Included
This product contains a battery for backup power. The battery must be connected during installation.
Features
- UL 924, NEC and NFPA 101 Life Safety Code
- Free Swinging Design
- Listed for damp location
- Vandal Resistant
- 120-277 VAC 50/60Hz operation
- Injection-molded, VO flame retardant, high impact housing
- Universal mounting canopy for ceiling, side, wall, and slope installation type
Specifications
| Dimensions (May Vary by Model) | |
| Width | 2.13" |
| Height | 9" - 10.38" |
| Length | 12.38" - 13" |
| Weight | 5.00 lb |

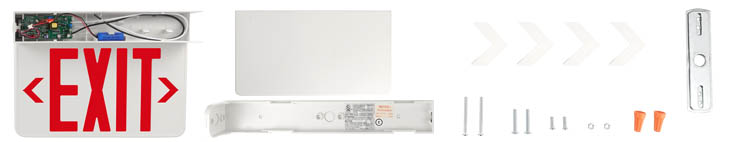

What's included?
- RED LED Swinging Exit Sign
- Two "EXIT" Faceplates (with optional knockout arrows)
- One Blank Faceplate
- Mounting Canopy, Installation Instructions & Hardware (Inside Unit)
- LiFePO4 Battery - Must connect the battery after installation
Construction
The LEDSW Swinging Exit Sign is constructed from injection-molded, V-0 flame-retardant, high-impact thermoplastic housing. White housing is standard, with a black housing option. The design of the housing features a hinged design that allows the faceplate to swing freely 70° forward and 90° backwards, providing ease of access and versatility during installation and maintenance.
Illumination
The LEDSW Swinging Exit Sign series illumination is achieved by use long-lasting, efficient ultra bright red or green LEDs. Color-matched diffuser eliminates hots spots and striations, providing optimal light output.
Emergency Operation
Upon failure of the normal utility power, an internal solid-state
transfer switch automatically provides uninterrupted emergency operation for at
least 90 minutes. The fully automatic solid-state, two-rate charger initiates
battery charging to recharge a discharged battery in 24 hours.
Battery - Battery Backup
The LEDSW Swinging Exit Sign is designed with a maintenance-free 3.6V 400mAh LiFePO4 battery that provides a minimum emergency duration of 90 minutes. The recharge time of the battery is 24 hours. If the remote head capable option is selected and no remote heads are connected, the battery backup time will extend to up to 3 hours, offering enhanced flexibility and longer emergency operation.
Operational Temperature
| Temperature Ratings | |
| Standard Option | 41°F to 122°F |
Self-Testing Option
Unit continuously monitors the AC power, battery supply voltage, emergency lamp condition and charging circuit. If failure is detected, the indicator will show status and correct when adjusted. Unit will automatically perform NFPA required monthly and annual testing. Refer to user manual for details.
Remote Head Capable Option
The remote head capability option allows the LEDSW Sign unit to supply power to up to two additional 3.6V LED remote heads. The remote heads would then operate on the same emergency mode as the standard units (see Emergency Operation Section).
Electrical Components
Universal voltage input 120-277VAC 50/60Hz operation. LED display indicates AC/ON. An external push button test switch with battery backup units allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.
Installation
The LEDSW Swinging Exit Sign is suitable for ceiling, side, wall, and slope mounting via included canopy. Snap together design allows for quick and easy installation. Knock-out chevrons for customized egress signage.
Mounting Configurations Explained
Dimensions
