Canada Series Edge Lit LED Exit Sign | Running Man | Adjustable Angle
Base Code: ELRT-CA
Items marked FAST SHIP typically ship same day if order is placed before noon
$67.00
The ELRT-CA Canada Approved Edge-Lit Exit Sign combines safety, style, and adaptability to meet diverse installation needs. Featuring an adjustable angle for optimal visibility, this exit sign includes the universally recognized running man pictogram, with options for pictograms with or without directional arrows. It comes in a sleek, standard aluminum housing or optional finishes in white or black to seamlessly integrate into any environment. Equipped with a battery backup for added reliability, the ELRT-CA also offers an AC-only option to suit your specific requirements, ensuring a trusted, code-compliant solution for any space.
Compatible Battery: 3.6V 700mAh
CSA Certified
CSA certification, issued by the Canadian Standards Association, is a mark of quality and safety. When a product bears the CSA-approved mark, it signifies that it has undergone rigorous testing for potential electrical hazards and inspection to ensure it meets the highest safety standards.
LED Lighting
This product uses energy efficient and long lasting LED's.
Battery Included
This product contains a battery for backup power. The battery must be connected during installation.
Features
- UL 924, NEC, OSHA and NFPA 101 Life SafetyCode
- Listed for damp location
- 120-347VAC 60Hz Operation
- Most versatile edge lit exit sign on the market
- Wall, sloped, high, or standard ceiling
- Aluminum housing with high grade acrylic face
- Field Installable Running Man Pictograms
- Long life LED illumination
- Test switch and charge rate indicator on battery backup models
Specifications
| Dimensions (May Vary by Model) | |
| Height | 9.94" - 11.06" |
| Depth | 1.81" - 3.63" |
| Length | 14" - 14.63" |
| Weight | 5.00 lb |
What's included?
- CA Series LED Exit Sign
- 3 pictograms to choose from
- 1 blank face
- Mounting Canopy, Installation Instructions & Hardware
- NiCad Battery - Must connect the battery after installation
Construction
This exit sign features a compact and decorative design, ideal for modern spaces. Constructed with durable aluminum housing, it is available in stylish silver, white, or black finishes to complement various aesthetics. The rotational acrylic panel allows for flexible mounting on different angled surfaces, and its universal single or double-face configuration ensures adaptability for any location. Designed for convenience, it includes an easy-to-replace pictograms, making adjustments straightforward and efficient.
Illumination
The ELRT-CA Edge-Lit Exit Sign utilizes SMD 2835 0.2W LEDs with a color temperature of 5700K, offering a bright, cool white illumination that enhances visibility. With a lifespan of L70 50,000 hours, these LEDs ensure long-lasting performance and reduced maintenance, making it a reliable choice for emergency and standard exit signage.
Emergency Operation
Upon failure of the normal utility power, an internal solid-state transfer switch automatically provides uninterrupted emergency operation for at least 120 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Battery - Battery Backup
The ELRT-CA series is designed with a 3.6V 600mAh maintenance-free NiCad battery. The battery is protected by a low voltage cut-off circuit.
Operational Temperature
| Temperature Ratings | |
| Standard Option | 50°F to 104°F |
Electrical Components
Universal voltage; operates on a 120-347VAC 50/60Hz voltage input, providing reliable power flexibility for various applications. It features a 24-hour recharge time and delivers a 2-hour discharge duration in emergency situations. Equipped with a test switch and charge indicator, this unit allows for easy maintenance checks to ensure optimal performance and safety readiness.
Installation
The ELRT-CA is suitable for wall, sloped, high or standard ceiling mounting. Includes field installable pictograms. All hardware is included.
Mounting Configurations Explained
View Installation Instructions

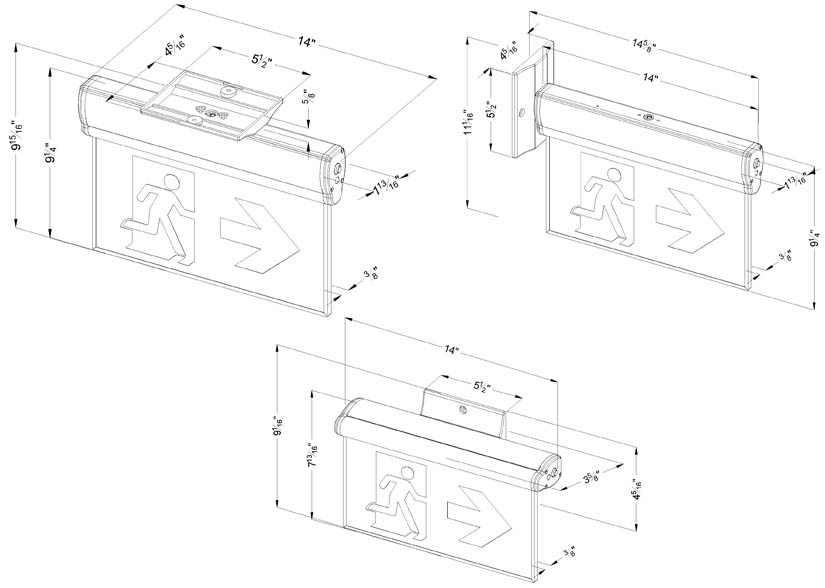

Dimensions
